ETB07

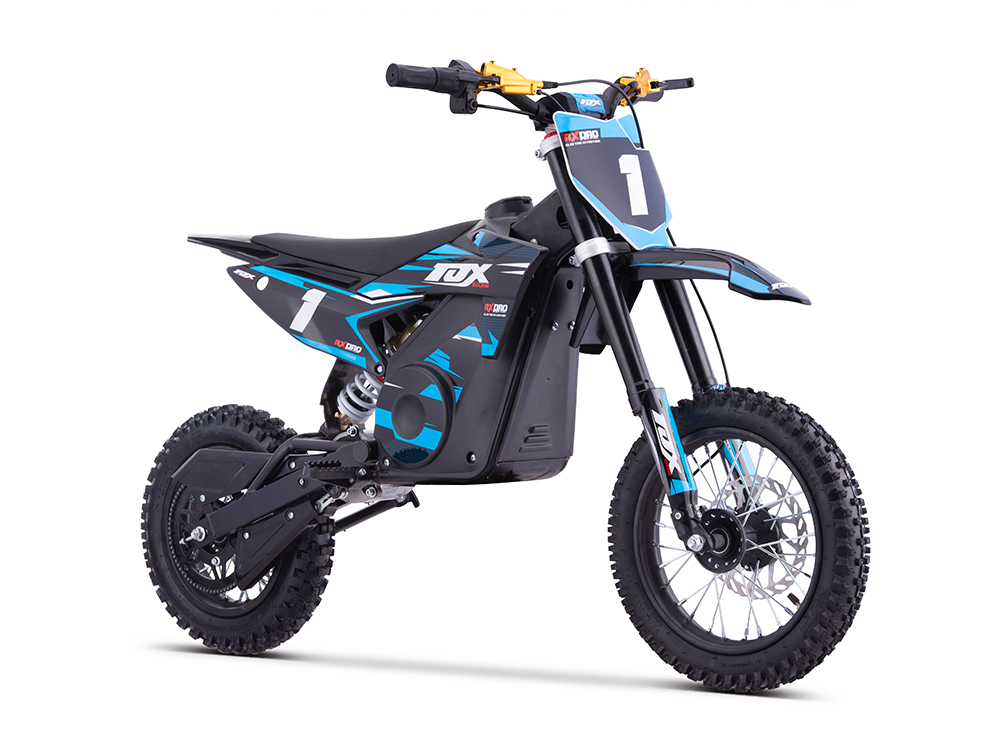

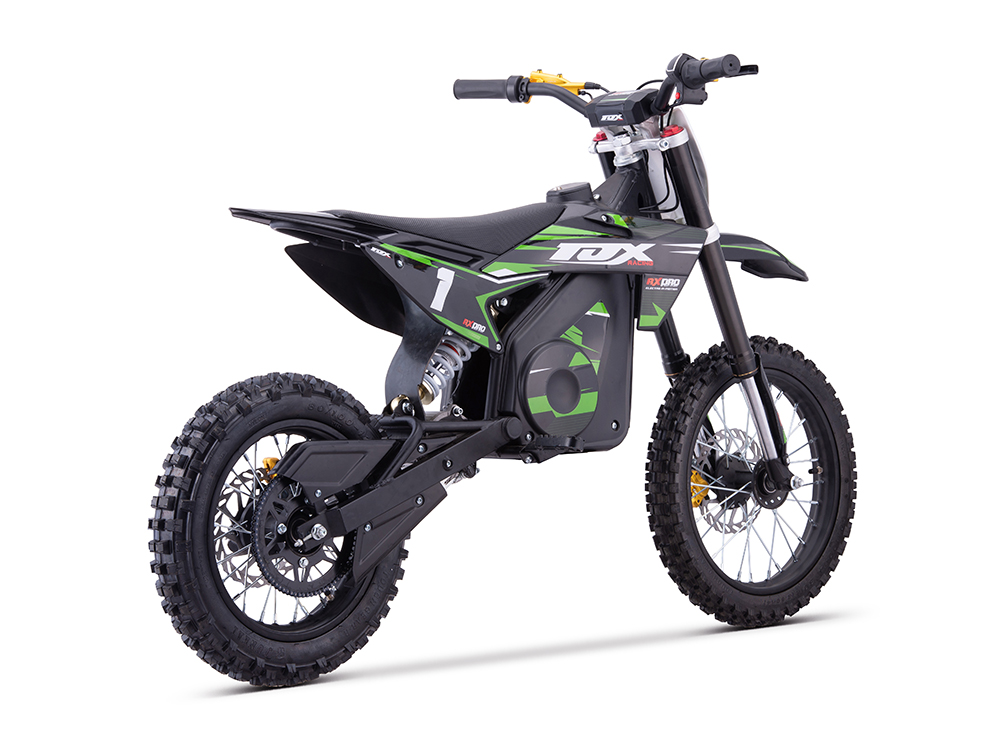

Electric Motorcycle
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Specificaton | 12"/10" BRUSHLESS | 14"/12" BRUSHLESS |
| E-motor | 1000W 36V neodymium magnet DC BRUSHLESS motor | 1300W 48V neodymium magnet DC BRUSHLESS motor |
| Optional E-motor | 1300W 48V | 1600W 48V DC BRUSHLESS 2000W 48V DC BRUSHLESS |
| Battery | 3*12V 12AH lead acid | 48V 13AH lithium |
| Optional battery | 36V 13Ah lithium battery 48V 13Ah or 48V 15.5AH lithium battery | 48V 15.6AH lithium |
| Transmission | intelligentized controller,2 function adjustable (see info. below) | intelligentized controller,2 function adjustable (see info. below) |
| Throttle response speed adjustable | 0.2S-1.0S | 0.2S-1.0S |
| Max speed adjutable | 9kmph-33kmph (1000W) / 40kmph (1300W) | 10kmph-41kmph(1300W) / 50kmph (1600W) / 58kmph (2000W) |

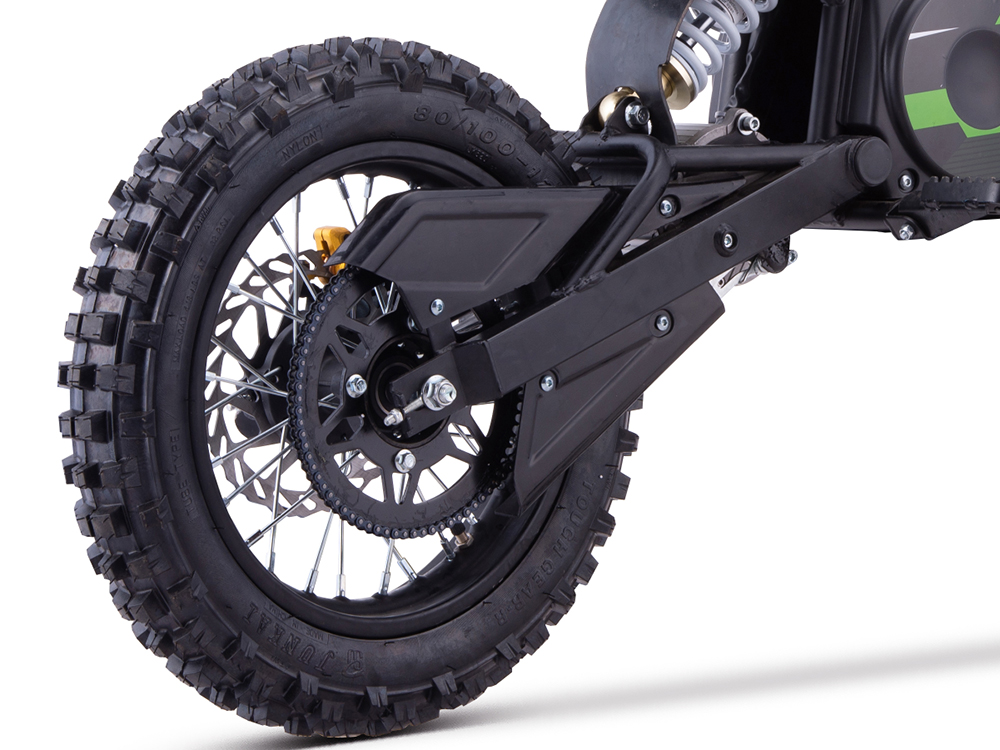

| Final drive | front 10T / rear 76T | front 10T / rear 76T |
| Range per full charge | 12AH lead acid battery: ~18KM 13AH lithium battery: ~23KM 15.6AH lithium battery: ~27KM | 13AH lithium battery: ~24KM 15.6AH lithium battery: ~28KM |
| Wheel & tires | high strength steel spoke rim, front 12" and rear 10" | high strength steel spoke rim, front 14" and rear 12" |
| Tire | front 2.75-12" / rear 2.75-10" | front 2.75-14" / rear 3.00-12" |
| Max. speed | 33kmph/1000W, 40kmph/1300W | 41kmph(1300W) / 50kmph (1600W) / 58kmph (2000W) |
| Max load capacity | 65kgs | 65kgs |

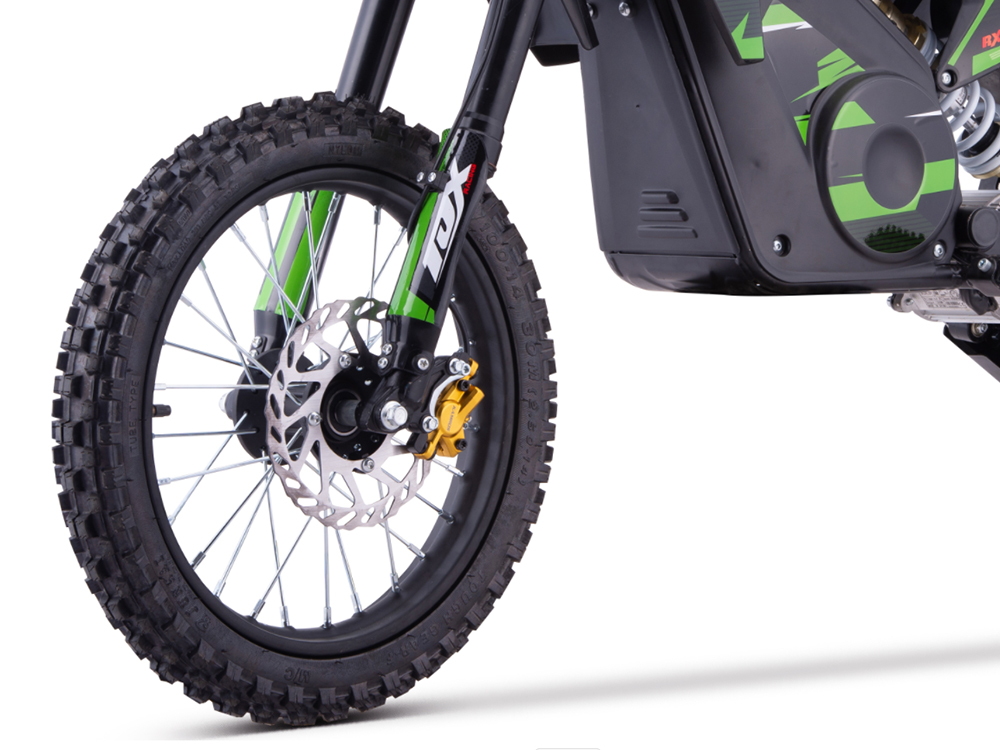

| Brake system | front and rear mechanical disc ( Ø180mm) brake | front and rear mechanical disc ( Ø180mm) brake |
| Suspension | hydraulic inverted fork and rear mono shock | hydraulic inverted fork and rear mono shock |
| Dimension ( L*W*H) | 1330*640*865 mm | 1470*640*920mm |
| Wheelbase | 930mm | 1010mm |
| Seat height | 630mm | 680mm |
| Min ground clerance | 240mm | 300mm |
| Dry weight | 44kgs lead acid battery / 36kgs lithium battery | 38kgs |
| Carton size | 1205*370*650mm | 1290*370*660mm |
| QTY/Container | 93pcs/20ft 236pcs/40HQ | 75pcs/20ft 215pcs/40HQ |
