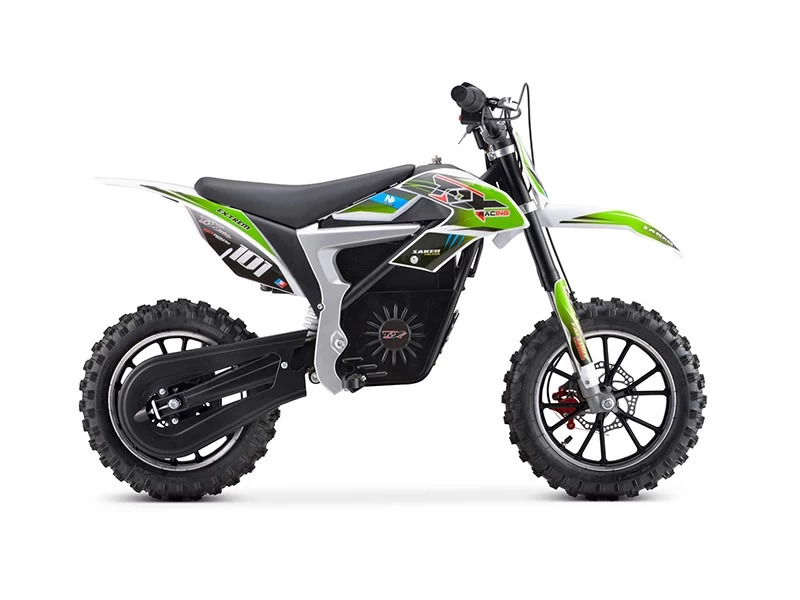

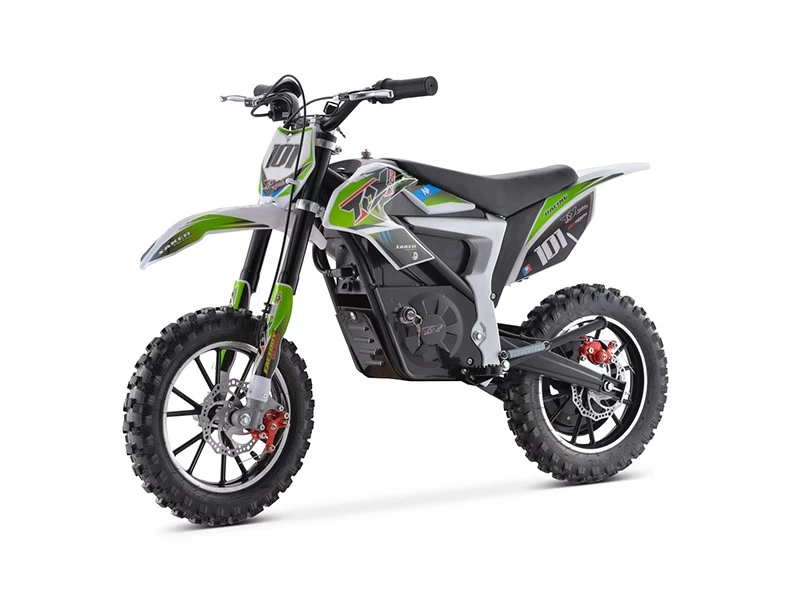

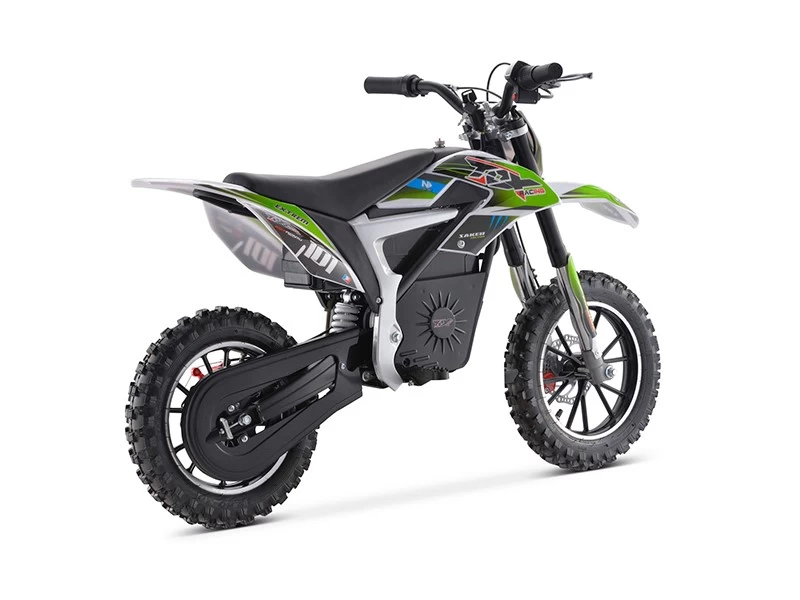

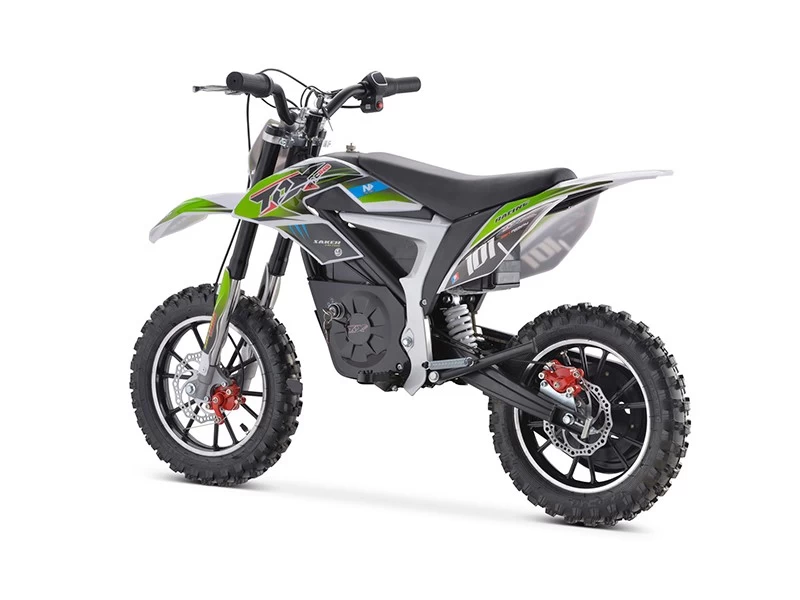

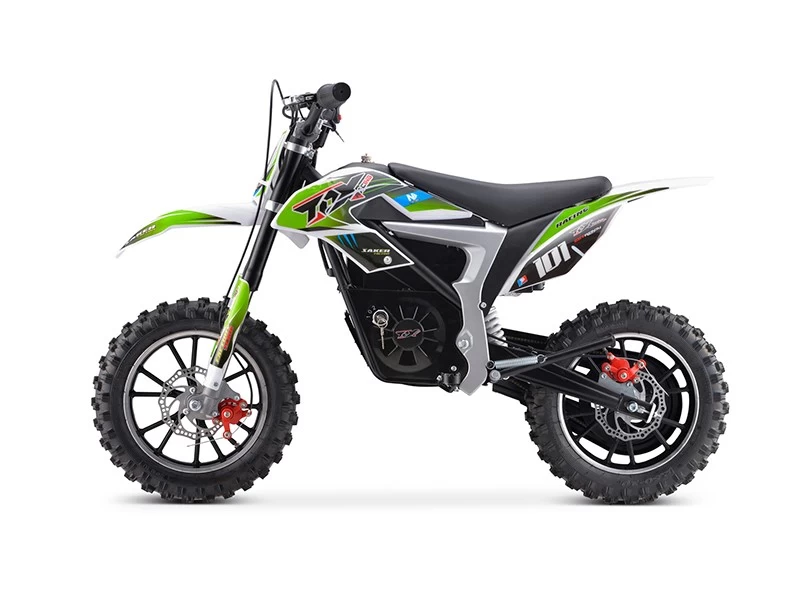

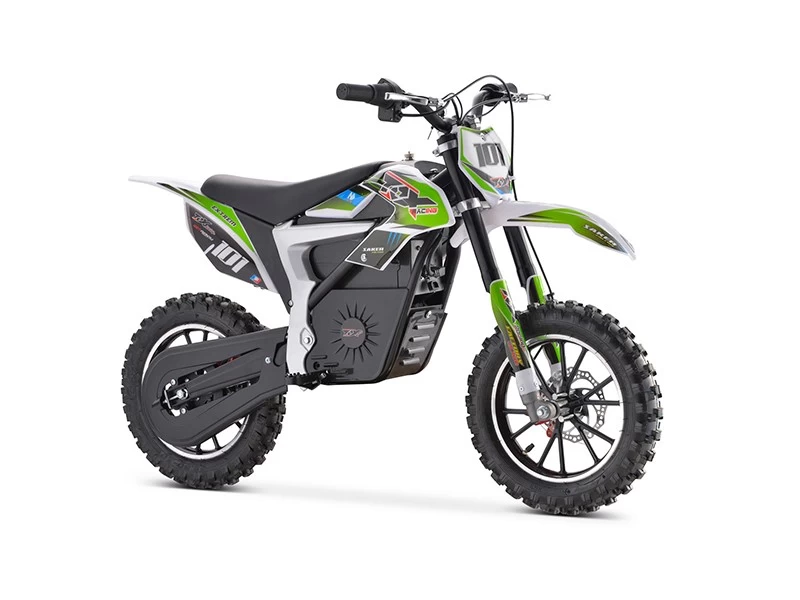

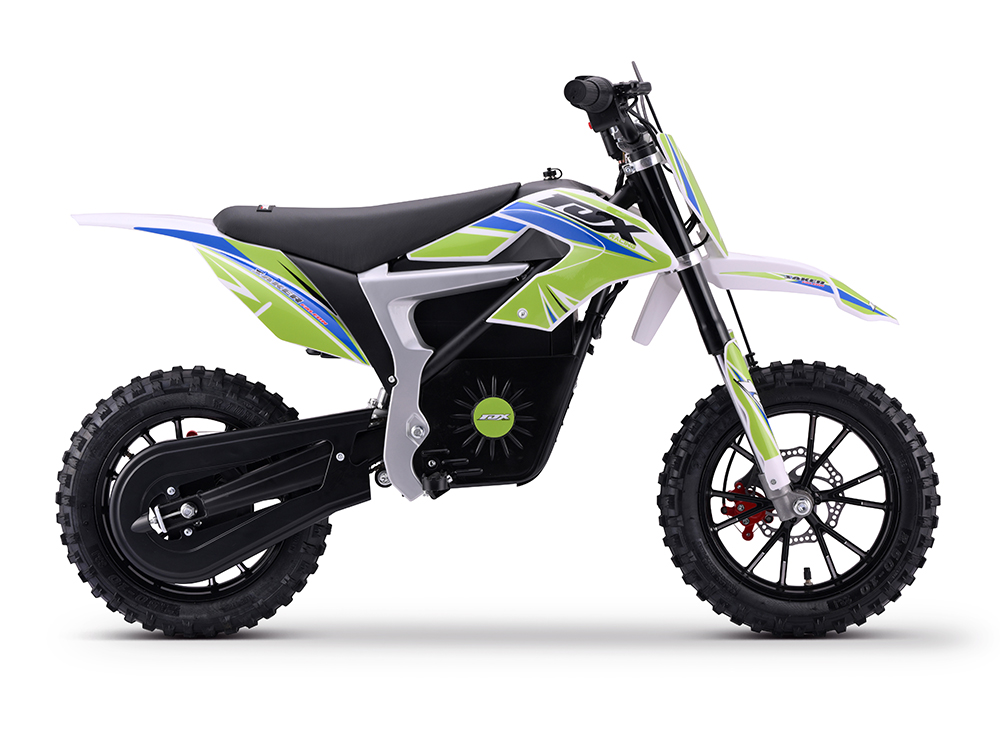

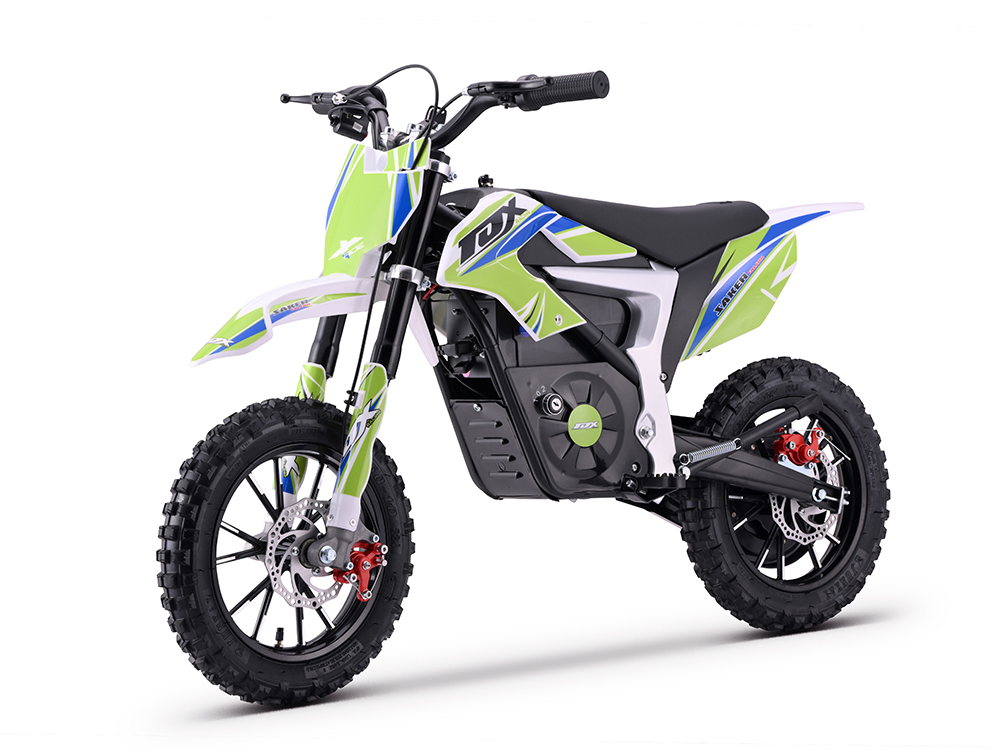

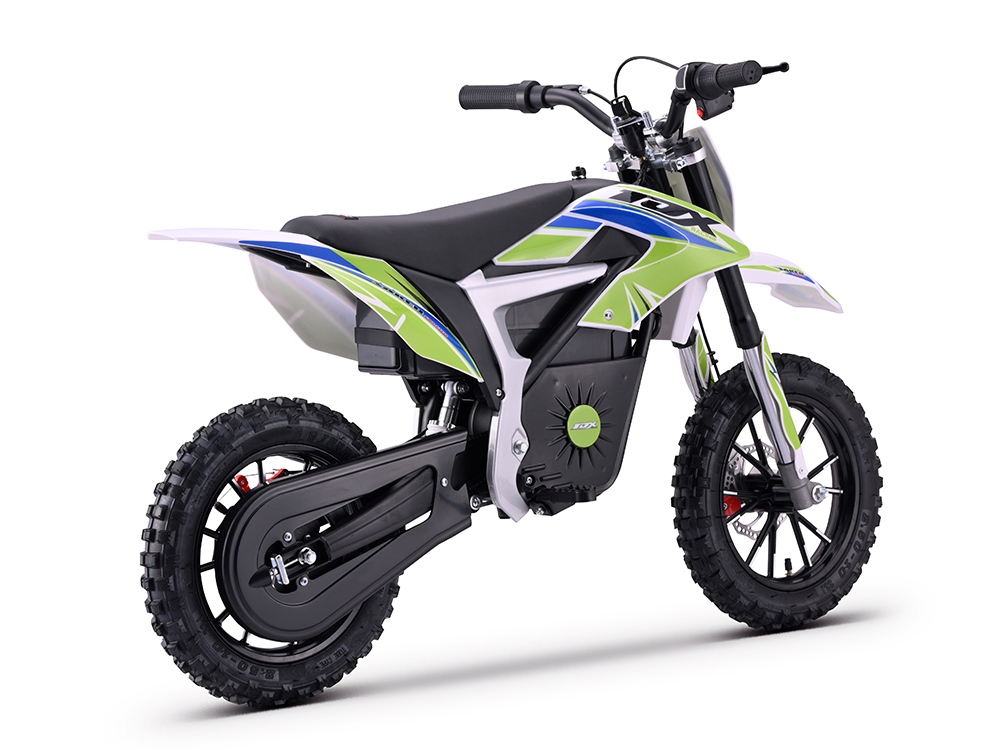

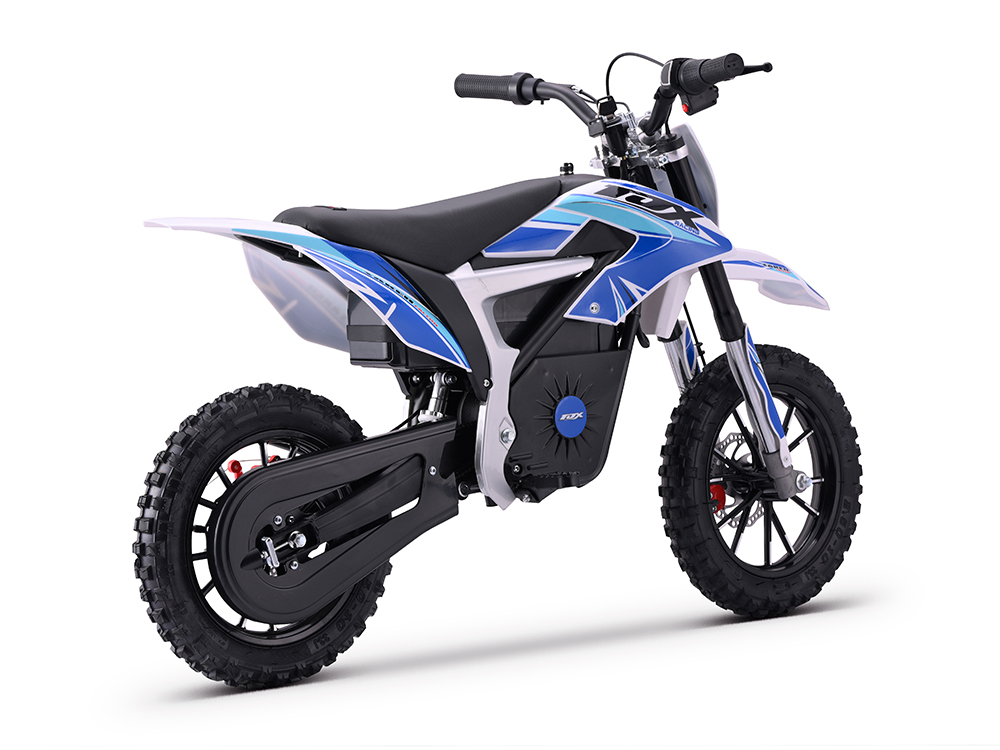

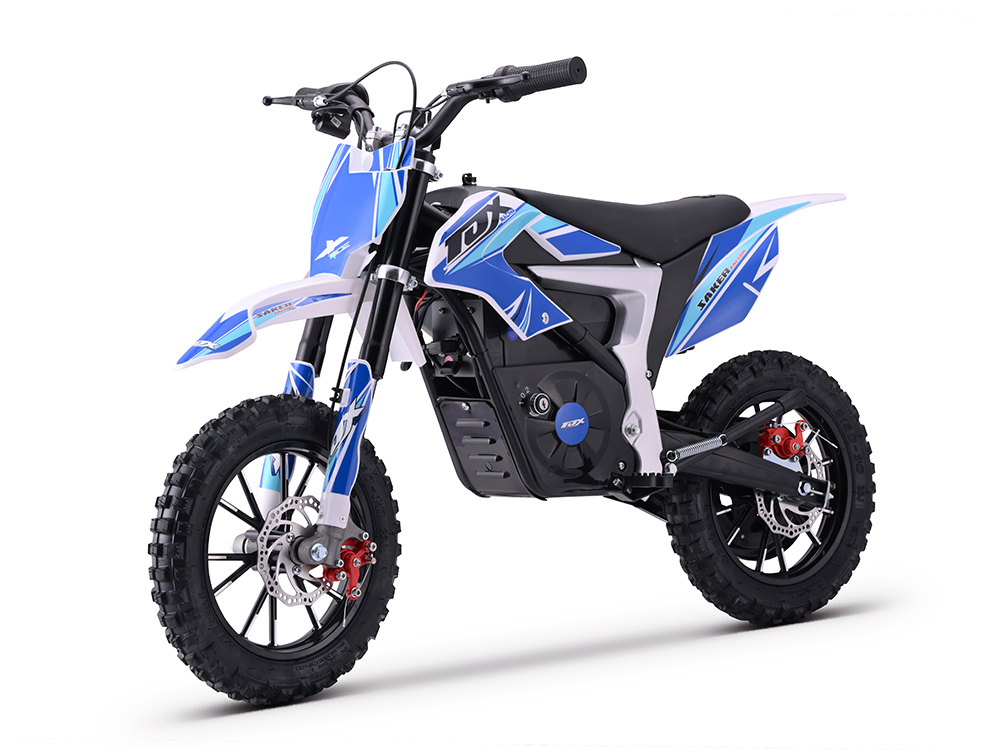

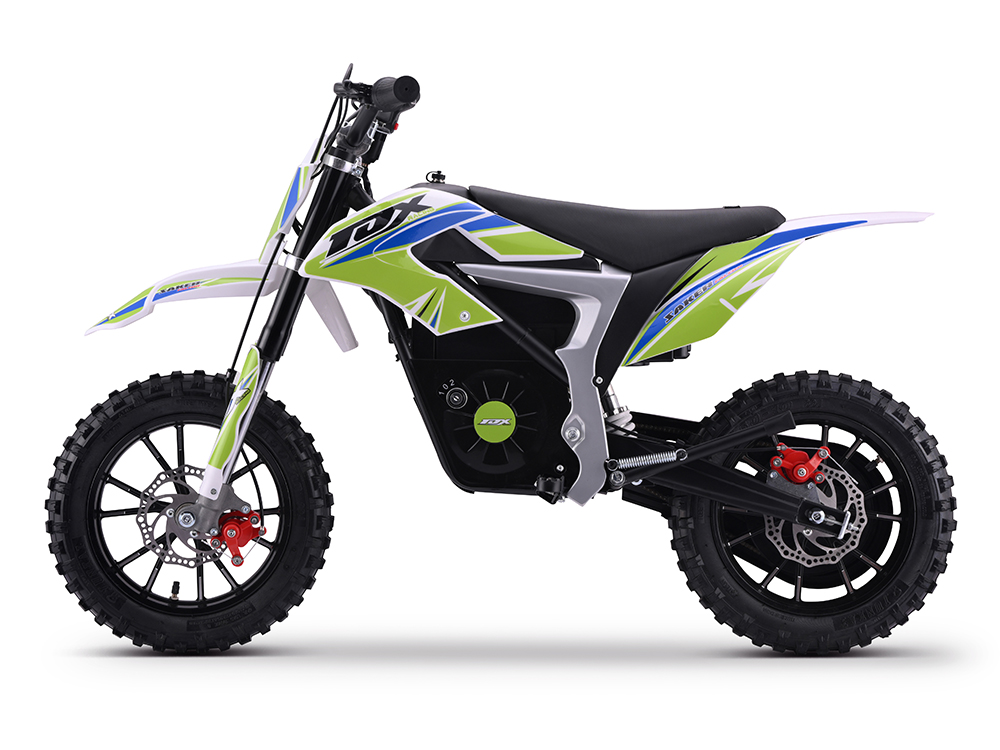

EMD04
Electric Motorcycle
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Engine | 550W 24V/36V neodymium magnet DC motor |
| Battery | 2*12V 12AH lead acid battery |
| Optional battery A | 36V 7.8AH lithium battery |
| Optional battery B | 36V 10.4AH lithium battery |
| Range per full charge | ~15KM |
| Charger for 24V lead acid battery | 27.6V/1.5A |
| Charger for 36V lead acid battery | 42.0V/2.0A |
| Transmission | intelligentized controller, 3 speed adjustable |

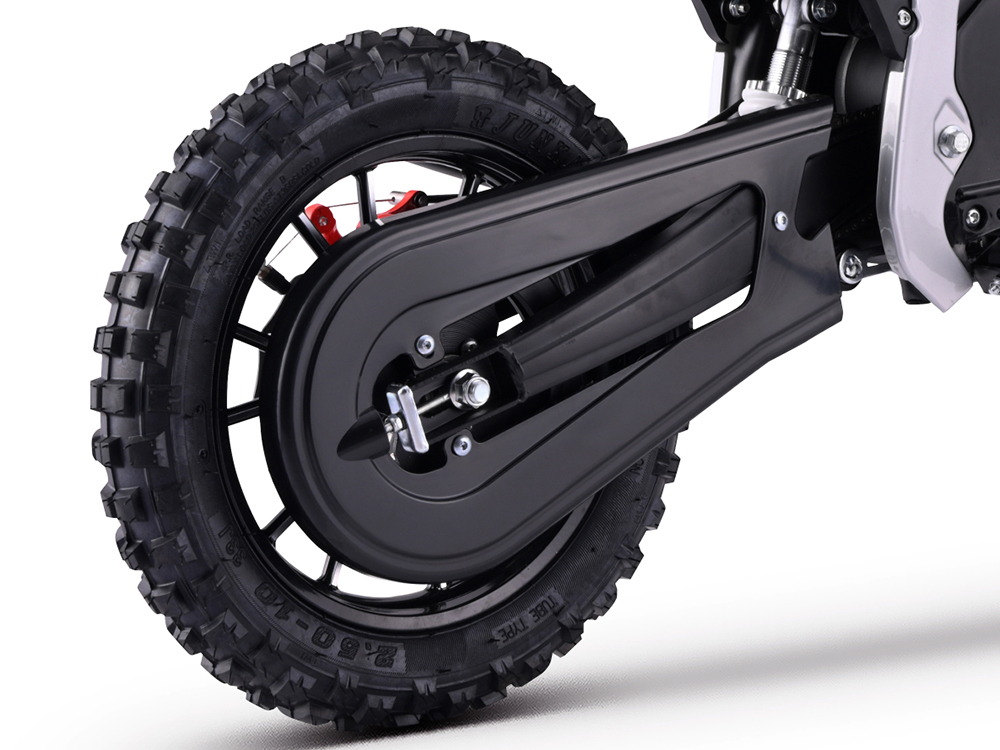

| Final drive | 11T/80T, 25H# chain |
| Wheel & tires | wire spoke style, heavy duty alu. rim with 2.5-10" tire |
| Max. speed | 22kmph |
| Max load capacity | 60kgs |

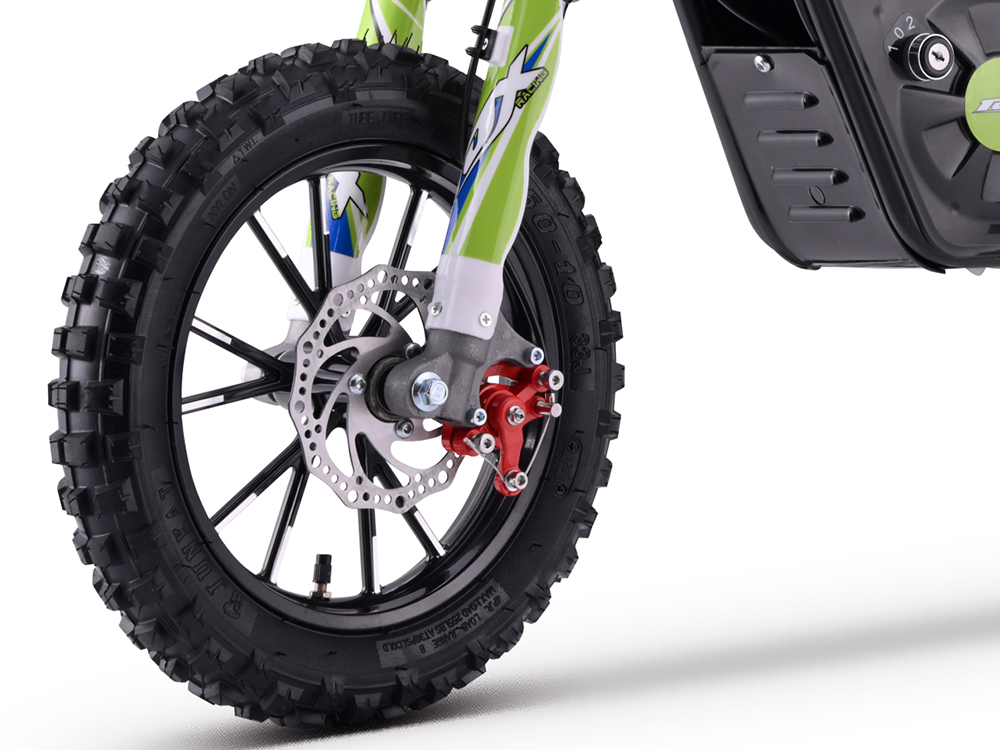

| Brake system | Front and rear mechanical disc brake |
| Suspension | Front upside down fork, rear mono shock |
| Dimension ( L*W*H) | 1210*570*780mm |
| Wheelbase | 820mm |
| Seat height | 580mm |
| Min ground clerance | 220mm |
| Dry weight of 24V lead acid | 30kg |
| Dry weight of 36V lithium | 24kg |
| Color available | white or black plastic body with graphic sticker in different color of red,blue,green,orange,pink,gray |
| Carton size | 1100*320*550mm |
| QTY/Container | 146pcs/20ft 336pcs/40HQ |
