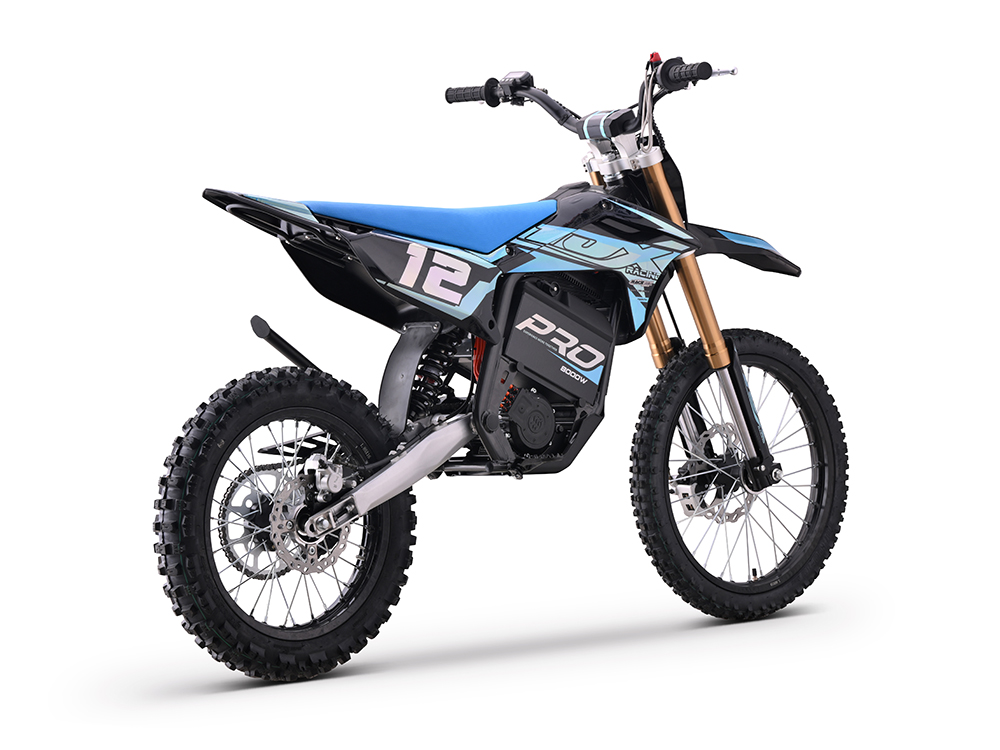

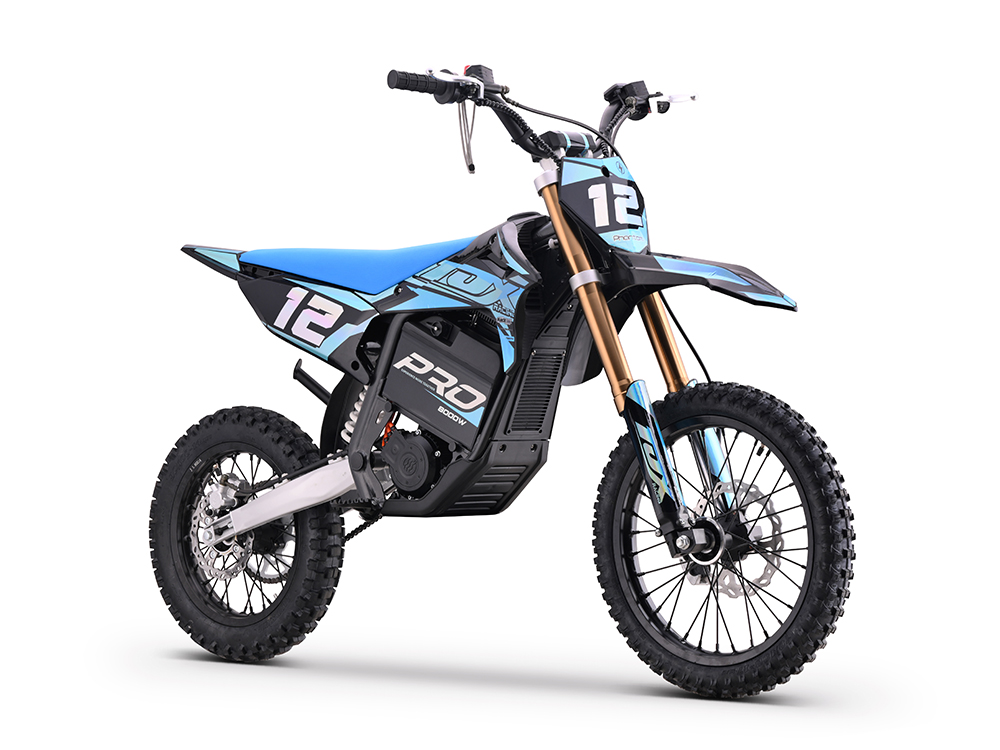

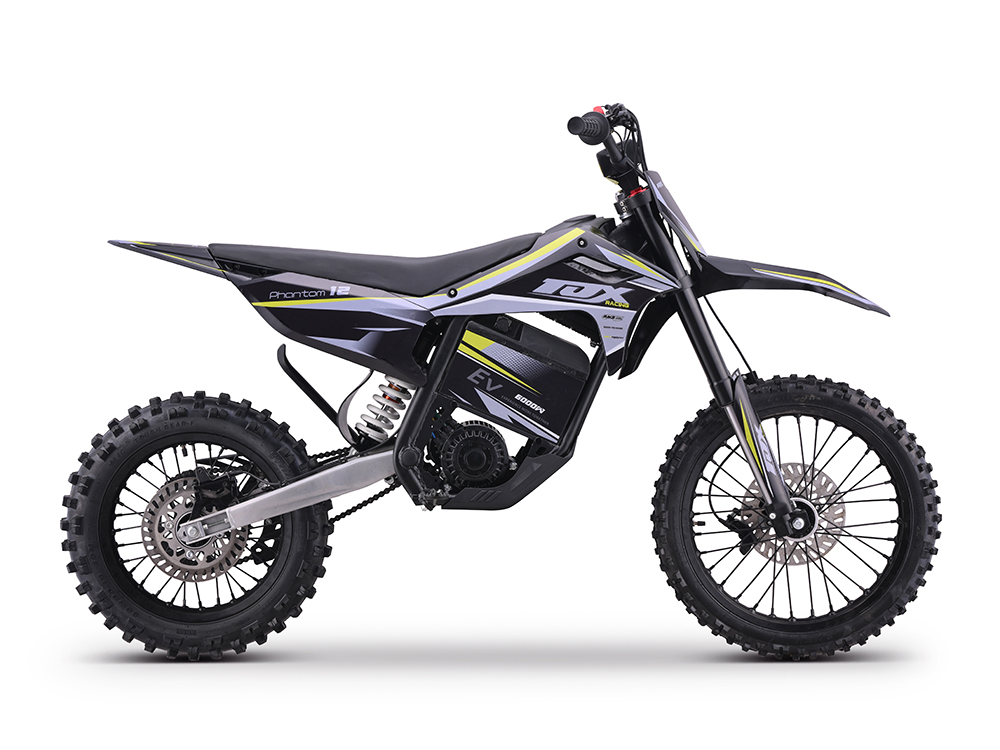

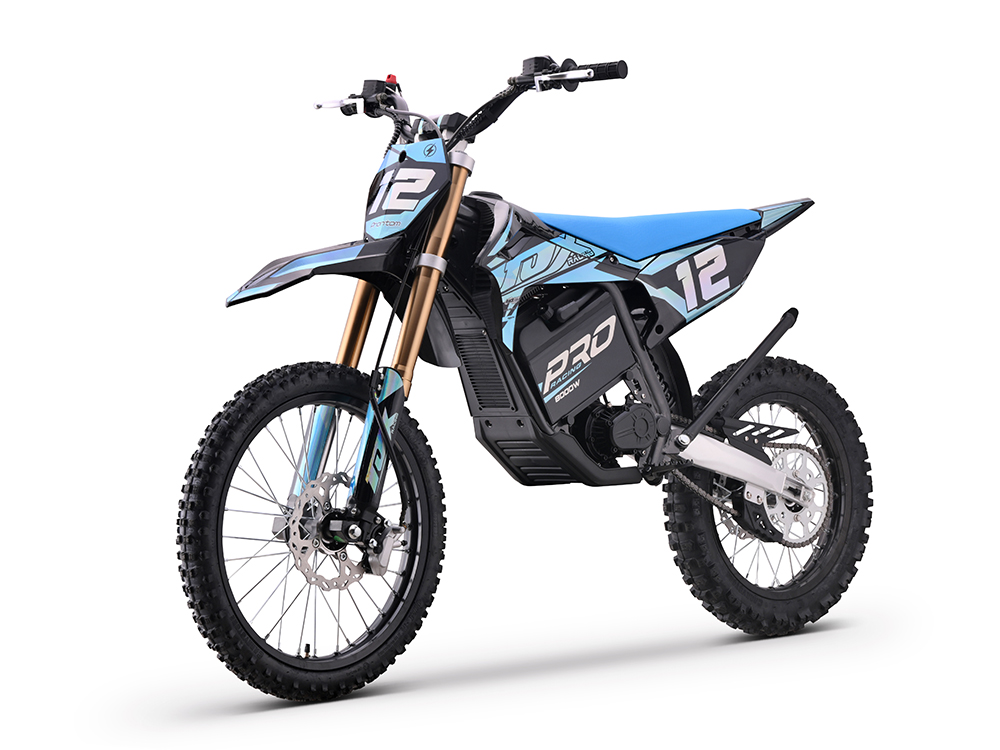

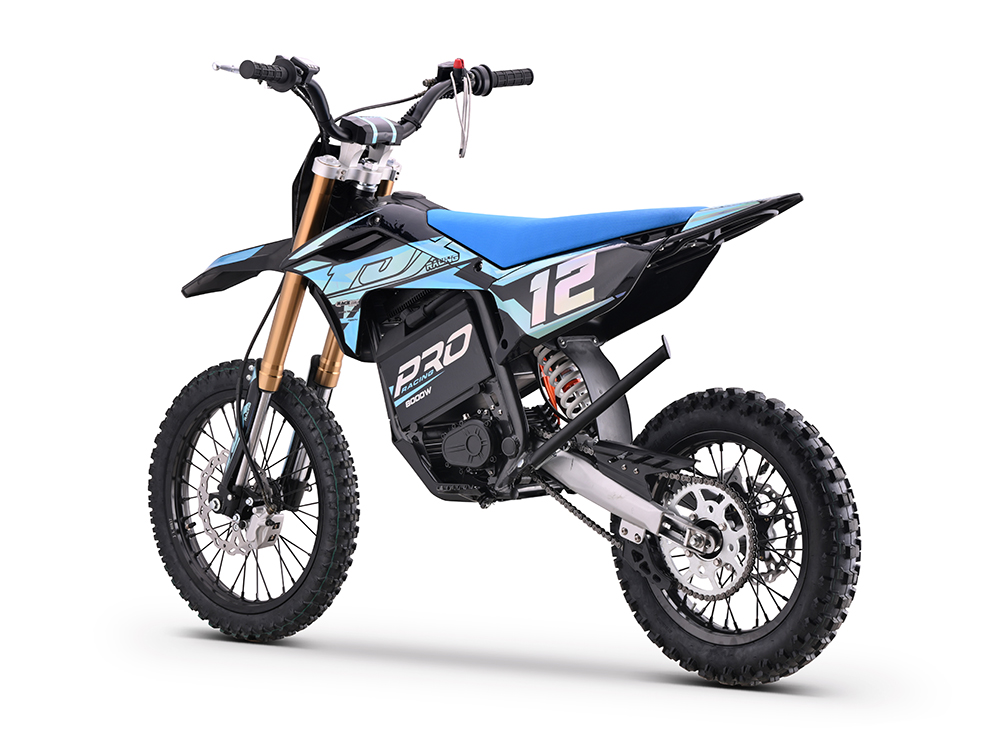

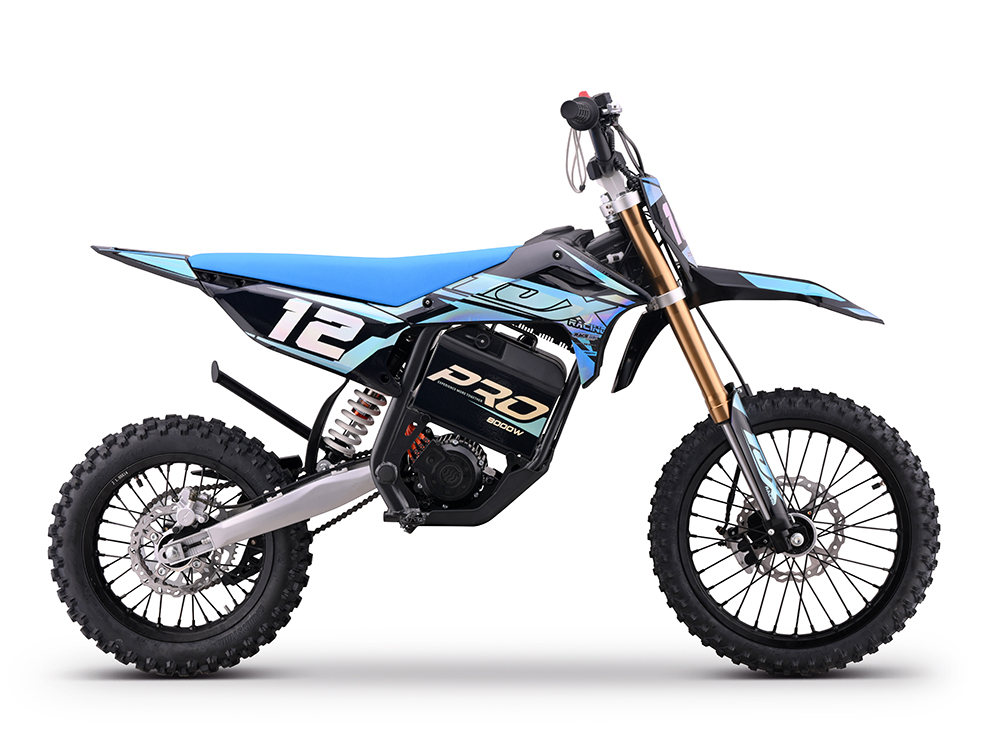

EMD12

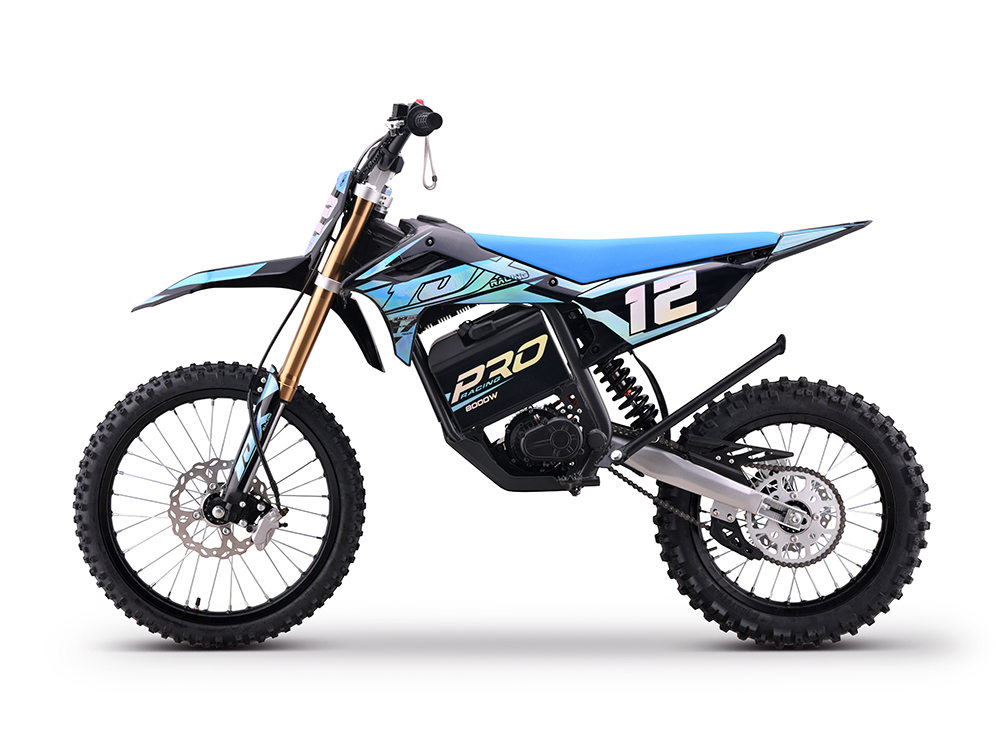

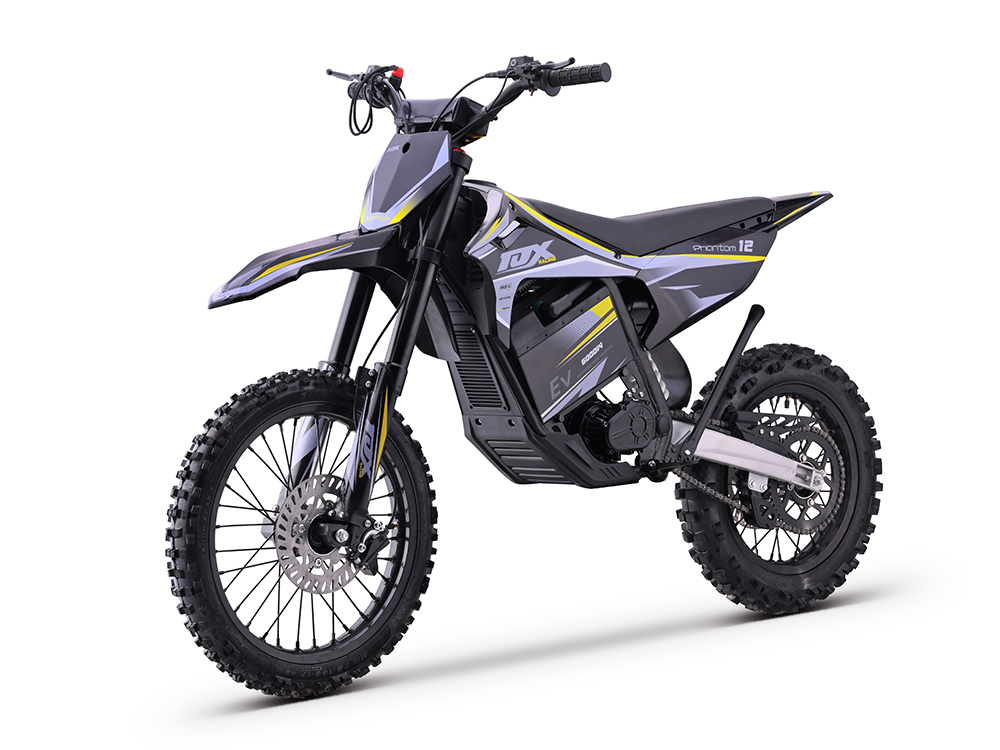

Electric Motorcycle
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| E-motor | 3000W 72V neodymium magnet DC BRUSHLESS motor |
| Rated power | 3000W (4.08HP) |
| Peak power | 6500W (8.16HP) with standard 40K controller 8000W (10.88HP) with upgraded 50K controller |
| Battery | 72V 30AH ternary lithium |
| Optional battery | 72V 35AH ternary lithium |
| Charger | 84V 6A lithium battery charger （UL/UKCA/CE/RCM approved) |
| Transmission | automaic gears, 3 optional drive mode ( Eco 1 / Standard 2 / Race 3) |
| Final drive | front 14T / rear 51T |
| Range per full charge( 30AH battery) | ~56KM (rider weight:60kg crusing speed :45kmph) |
| Range per full charge( 30AH battery) | ~65KM (rider weight:60kg crusing speed :45kmph) |

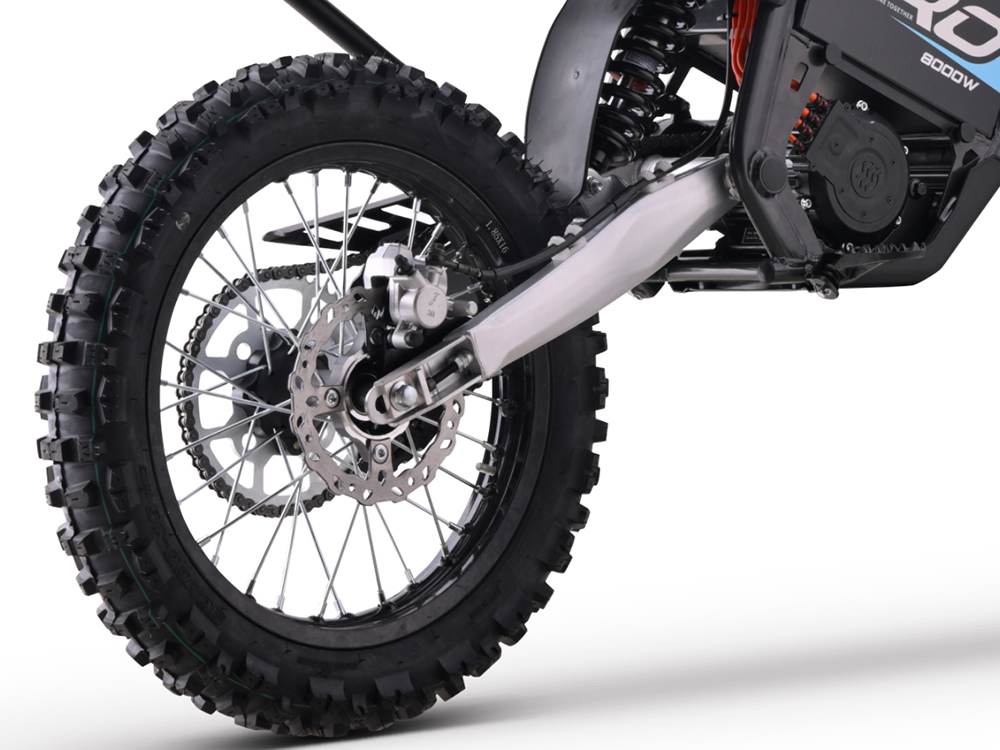

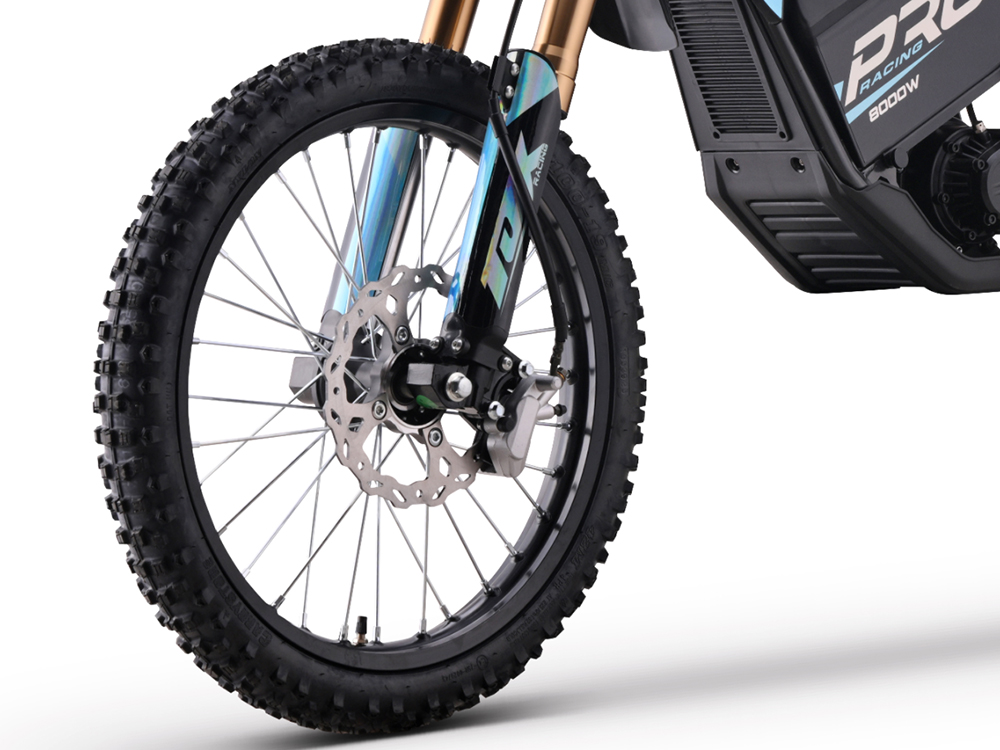

| Wheels | high strength steel spoke rim, front 1.6-17" and rear 1.85-14" |
| Optional wheels | high strength steel spoke rim, front 1.6-19" and rear 1.85-16" |
| Tire/tube | front 70/100-17" / rear 90/100-14" |
| Optional Tire/tube | front 70/100-19" / rear 90/100-16" |
| Max. speed of ECO(1) mode | 45kmph |
| Max. speed of Standard mode(2) | 65kmph |
| Max. speed of Race mode(3) | 80kmph (17/14) / 88kmph (19/16) |
| Max load capacity | 90kgs |
| Brake system | front and rear hyardulic brake / disc |

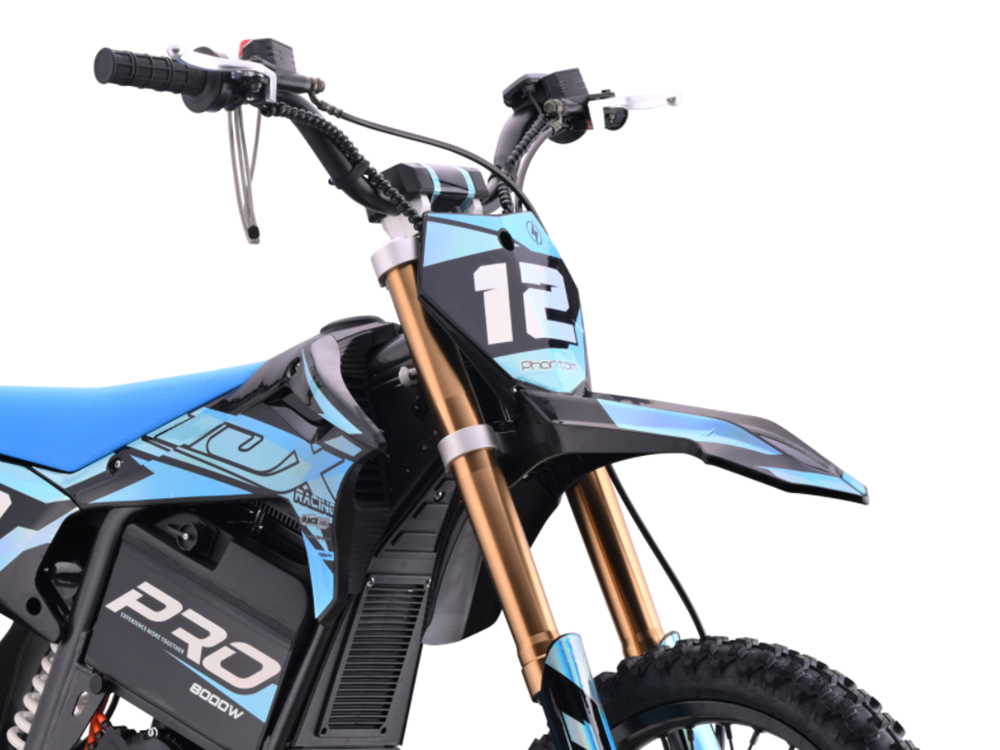

| Suspension | hydraulic inverted fork and rear mono shock |
| Dimension ( L*W*H) | 1770*800*1080mm (17/14) 1840*800*1130mm (19/16) |
| Wheelbase | 1240mm |
| Seat height | 800mm (17/14) / 845mm (19/16) |
| Min ground clerance | 290mm (17/14) / 335mm (19/16) |
| Dry weight | (30AH battery): 75.5kgs (17/14) / 77KG (19/16) (35AH battery): 77kgs (17/14) / 78.5KG (19/16) |
| Carton size | 1560*380*850mm |
| QTY/Container | 50pcs/20ft 132pcs/40HQ |
