EMD09

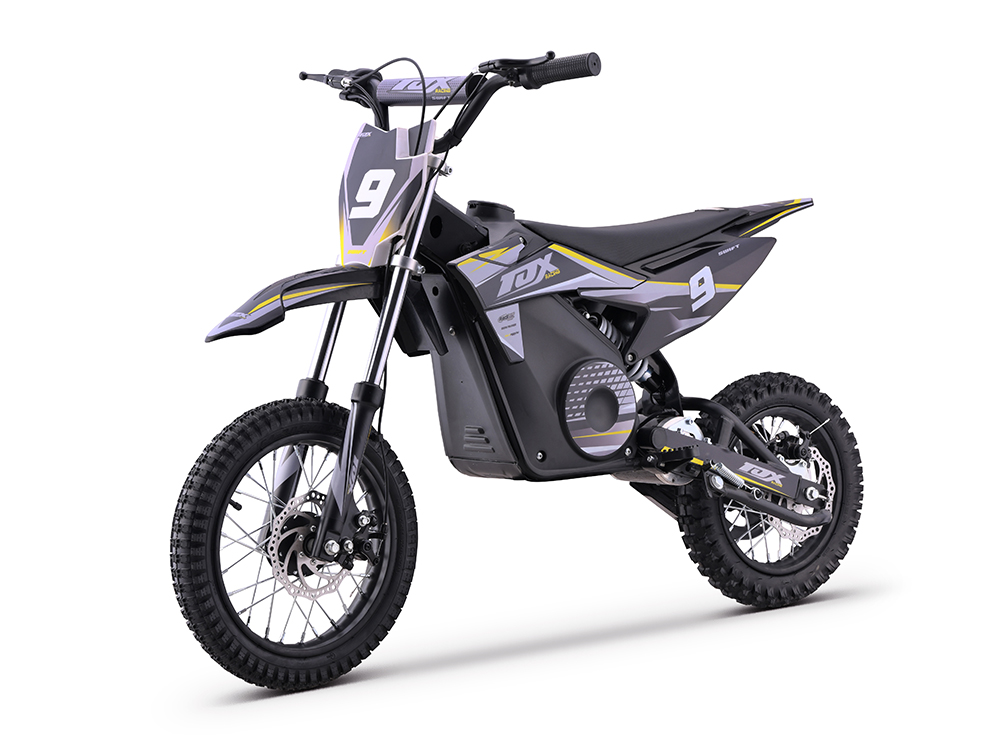

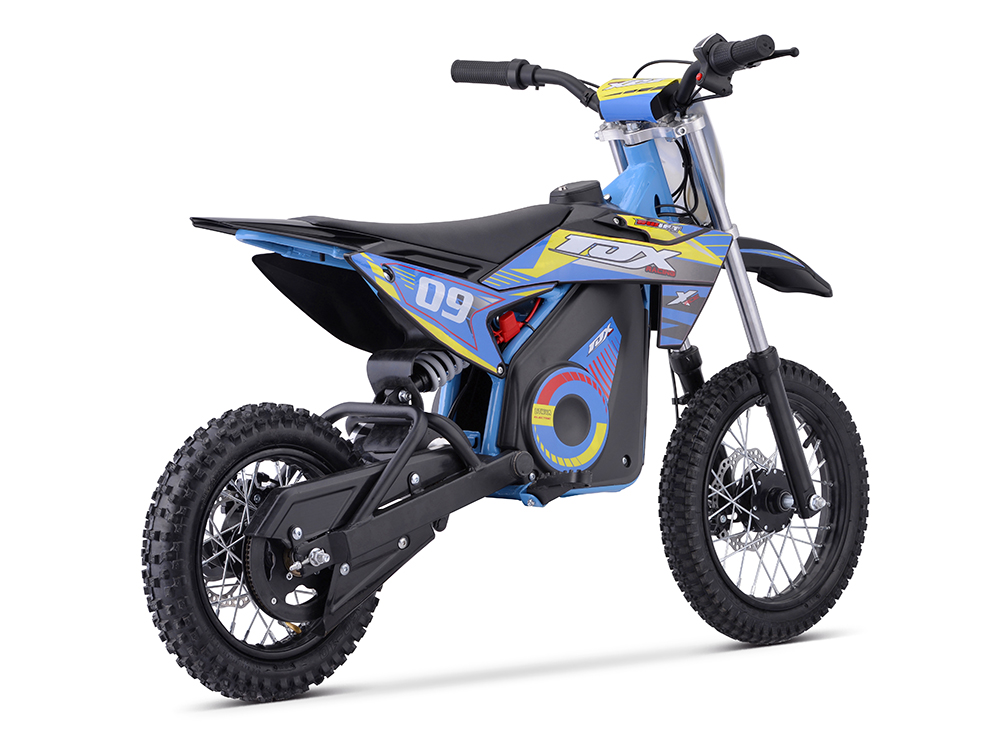

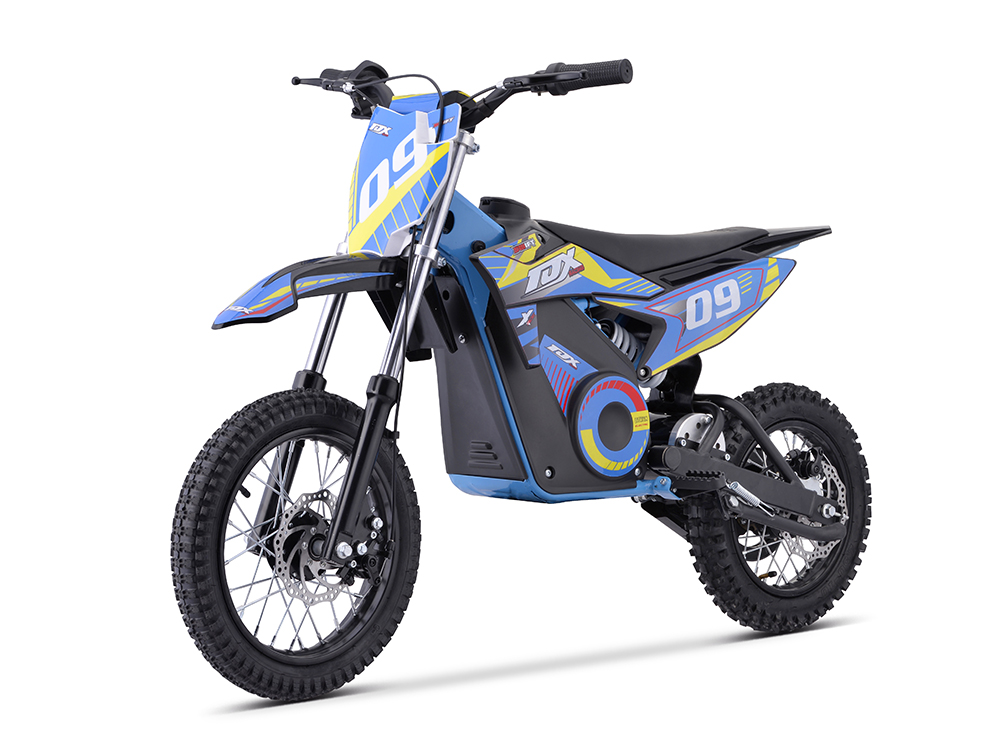

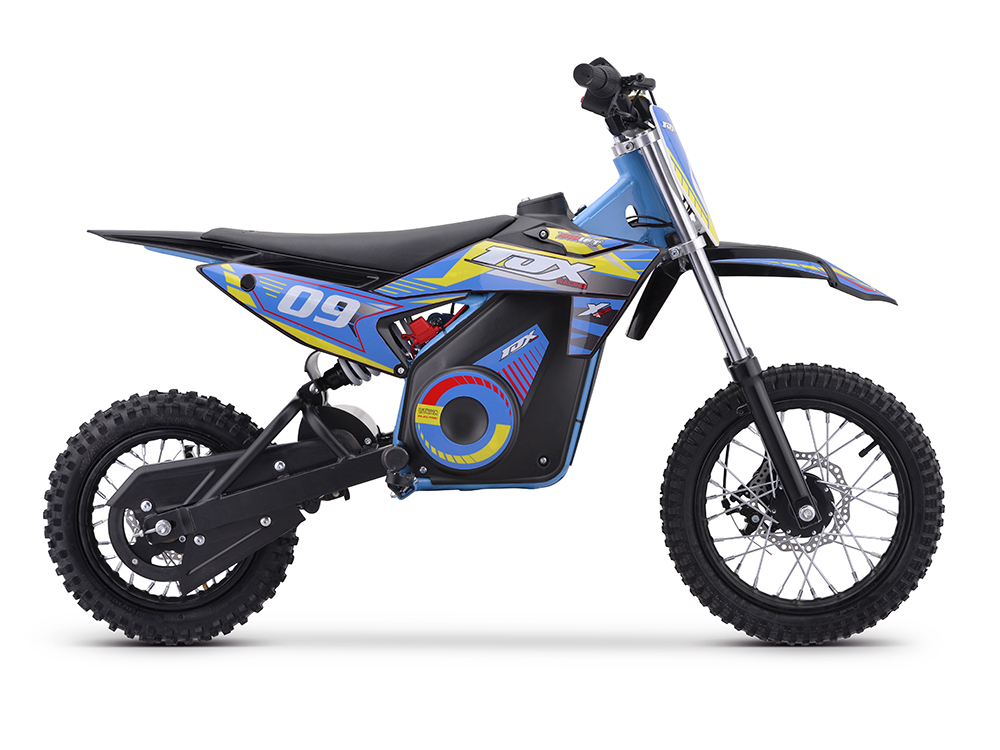

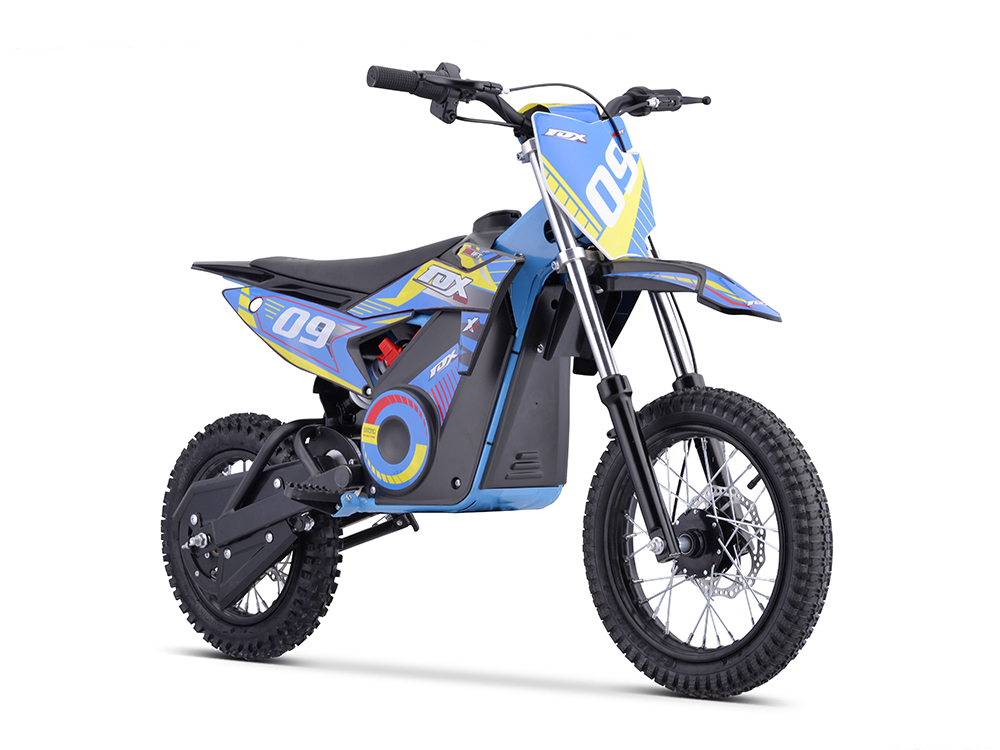

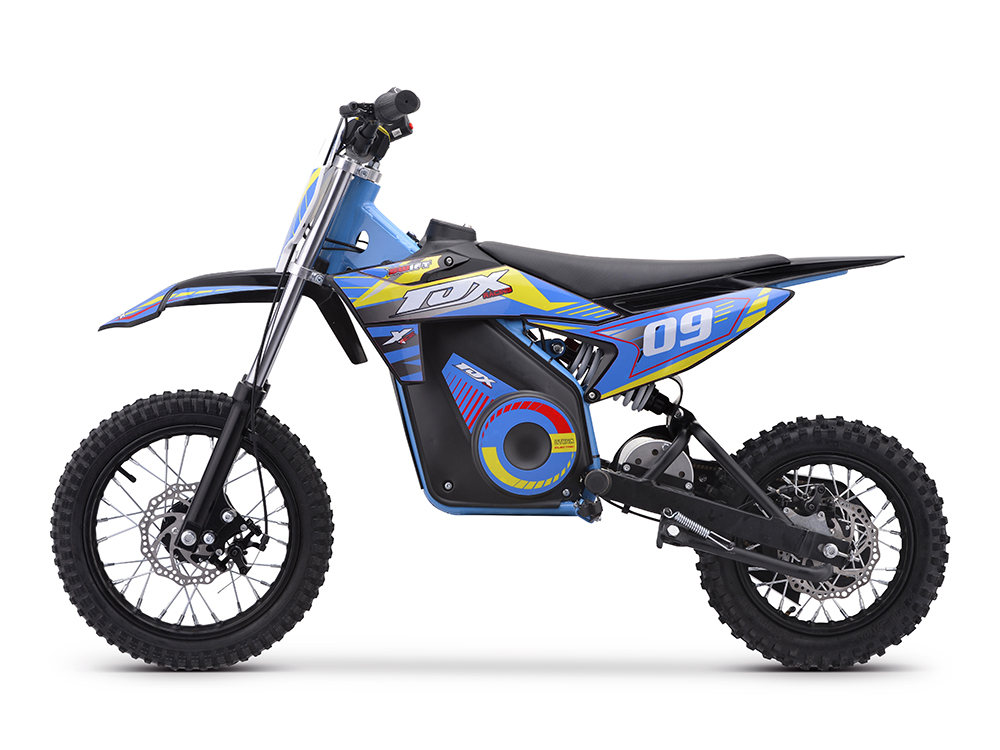

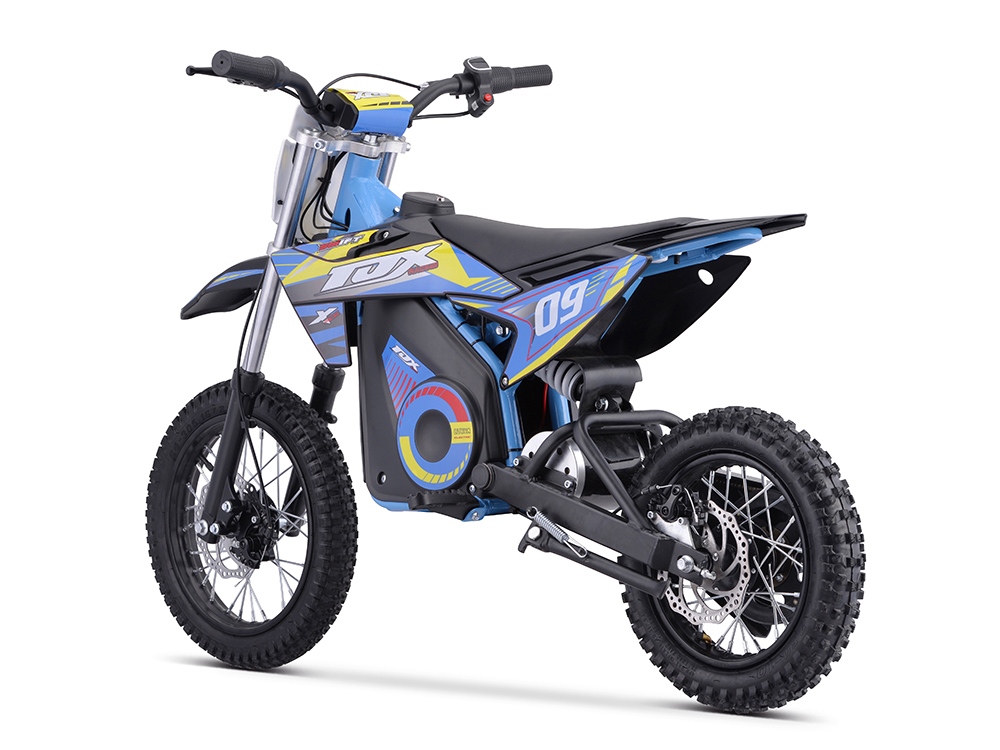

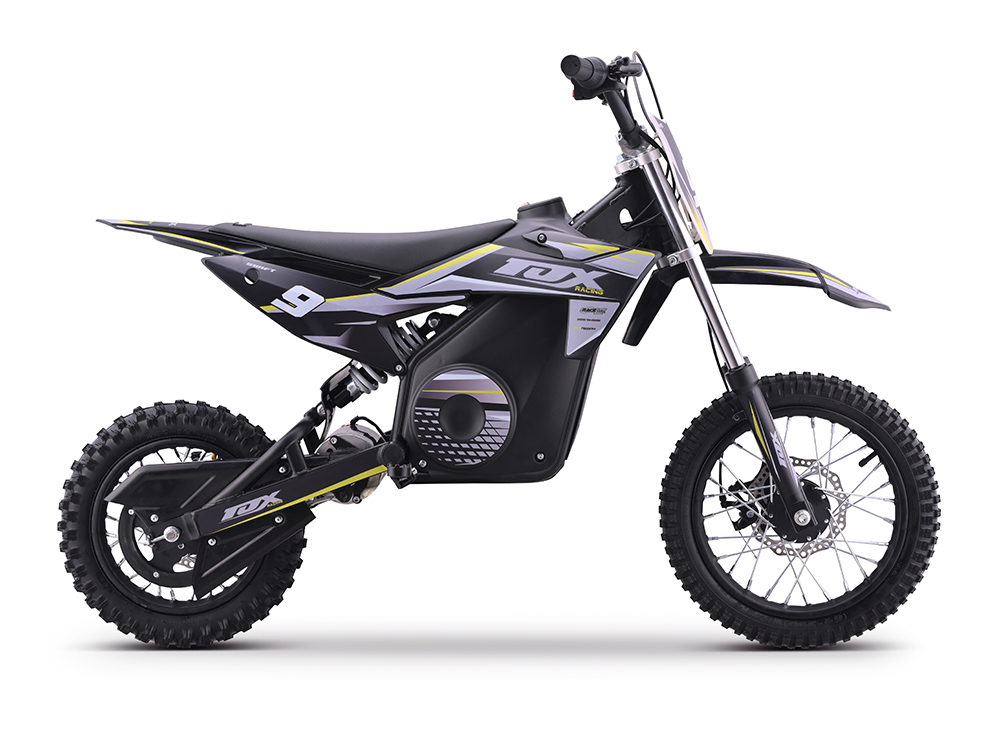

Electric Motorcycle
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| E-motor | 800W 36V DC BRUSH motor |
| Battery | 36V 7.8Ah lithium |
| Optional battery | 36V 10.4Ah |
| Transmission | intelligentized controller,3 speed adjustable |
| Charger | 43.2V/1.5A |
| Optional charger | 43.2V/1.5A |

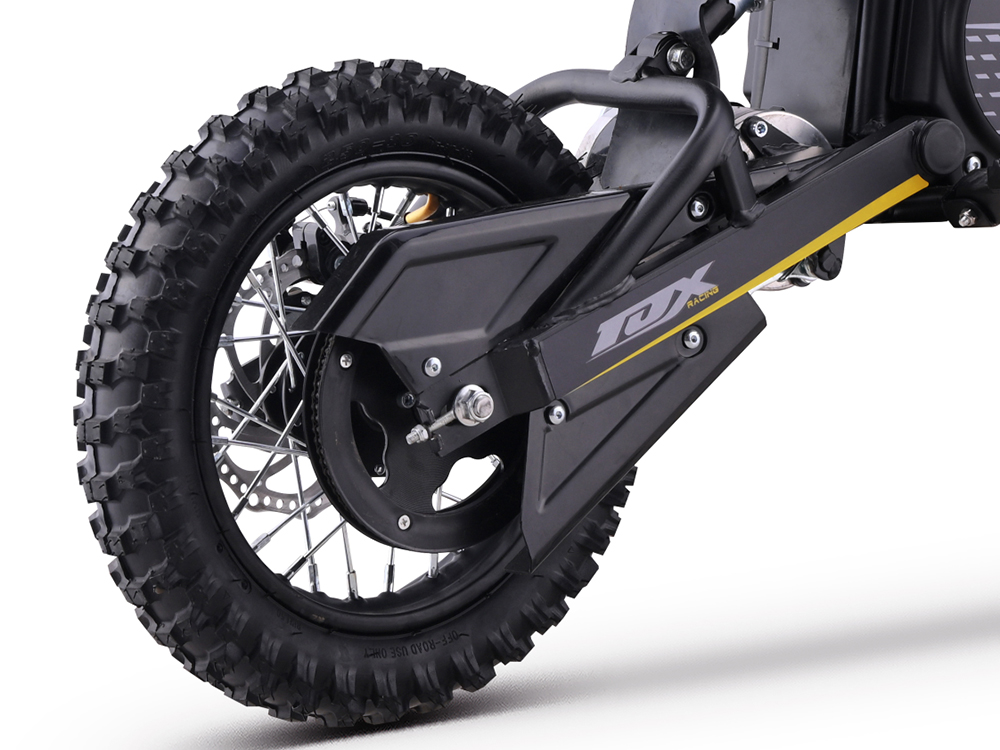

| Final drive | ront 13T / rear 80T, 25H# chain |
| Range per full charge | 7.8AH/10.4AH lithium battery: ~25KM/29KM |
| Wheel & tires | high strength steel spoke rim, front 12" and rear 10" |
| Tire | front 2.4x12"/ rear 2.50-10" |
| Max. speed | 28kmph |
| Max load capacity | 65kgs |

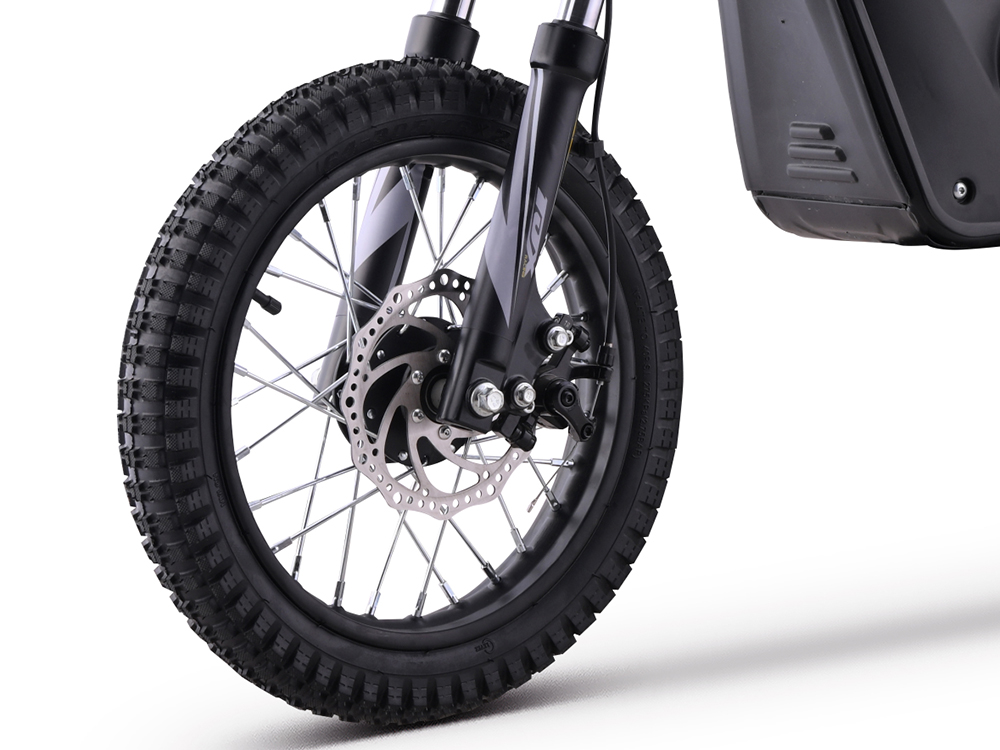

| Brake system | front and rear mechanical disc ( Ø160mm) brake |
| Suspension | hydraulic standard fork and rear mono shock |
| Dimension ( L*W*H) | 1330*640*865mm |
| Wheelbase | 920mm |
| Seat height | 630mm |
| Min ground clerance | 250mm |
| Dry weight | 35kg |
| Color available | white or black plastic body with graphic sticker in different color of red,blue,green,orange,pink,gray |
| Carton size | 1060*545*380mm(fork disassembled / foam pack) |
| QTY/Container | 120pcs/20ft 300pcs/40HQ |
