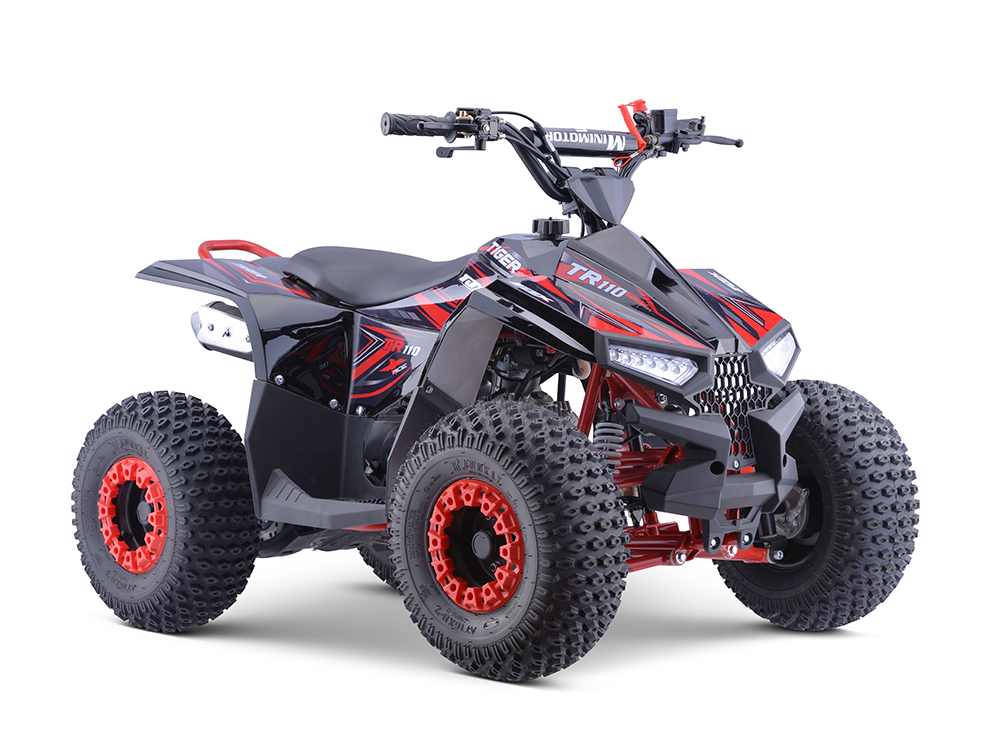

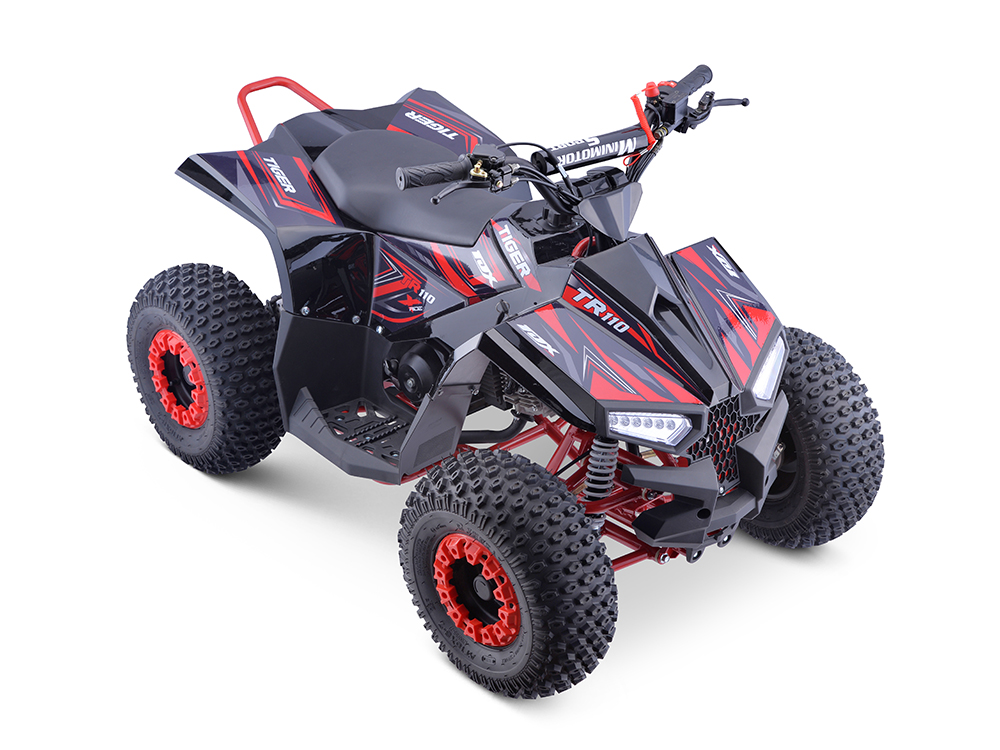

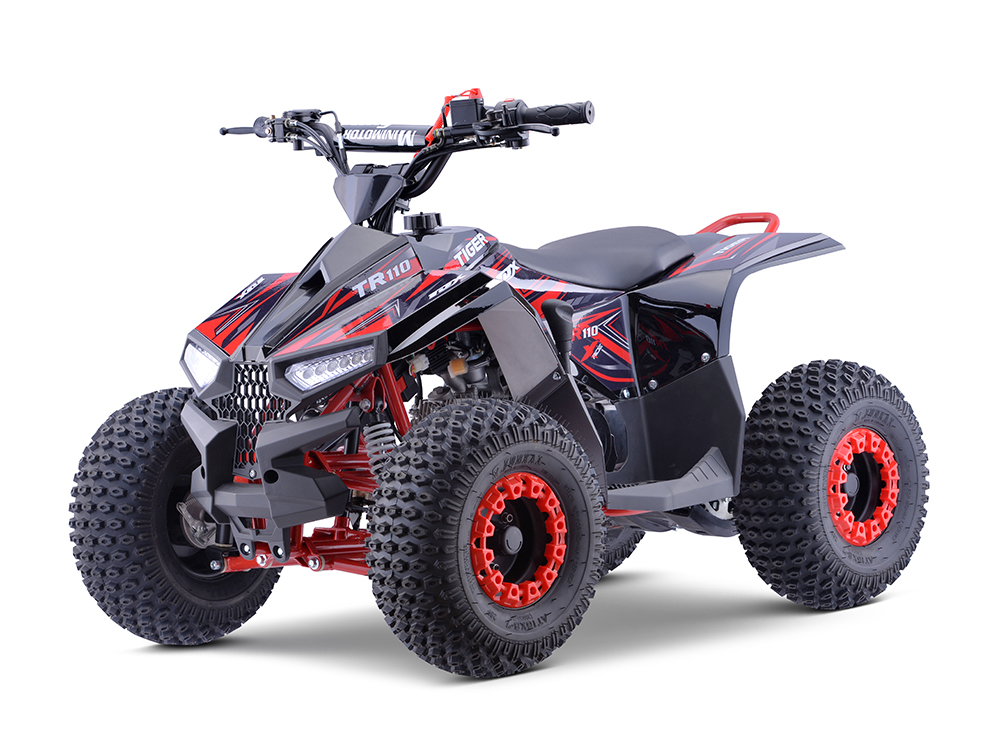

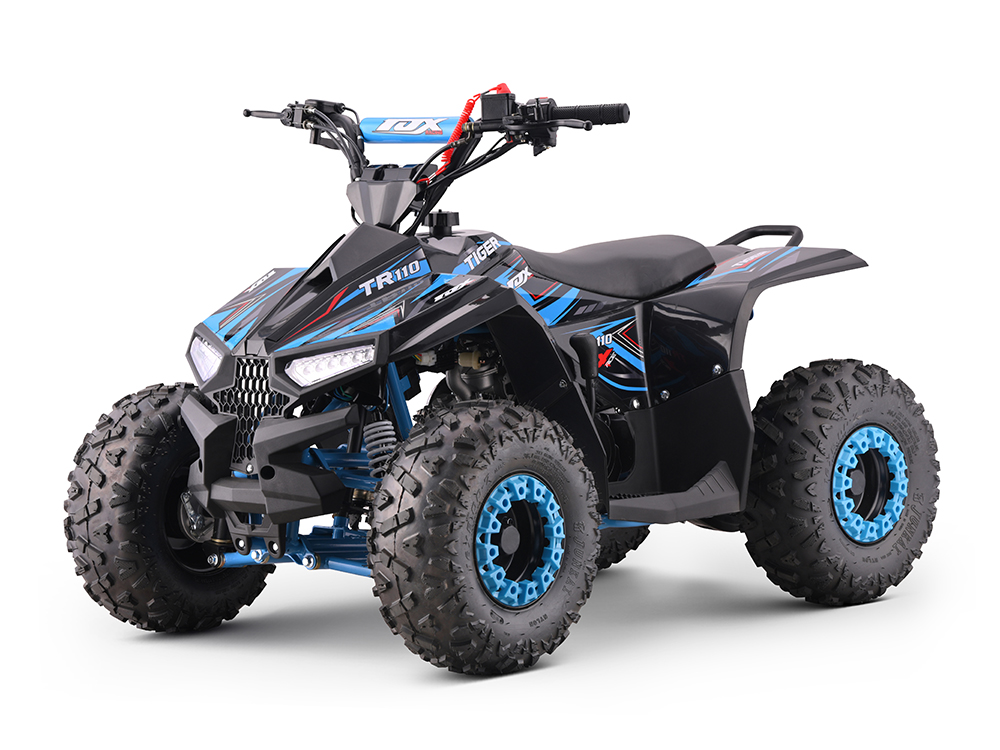

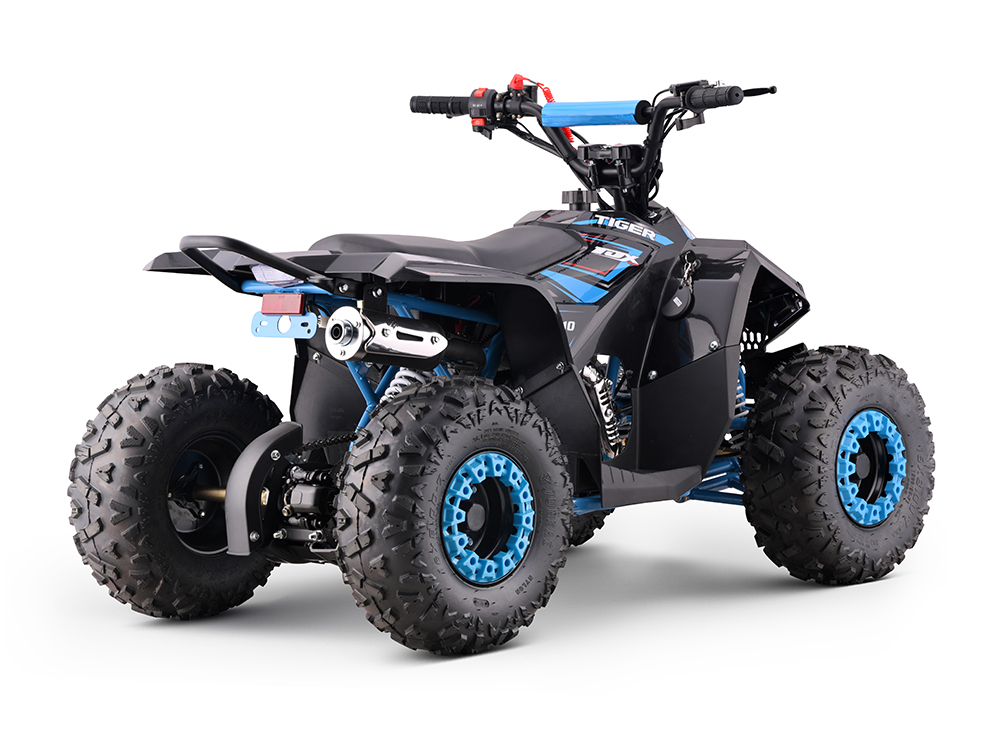

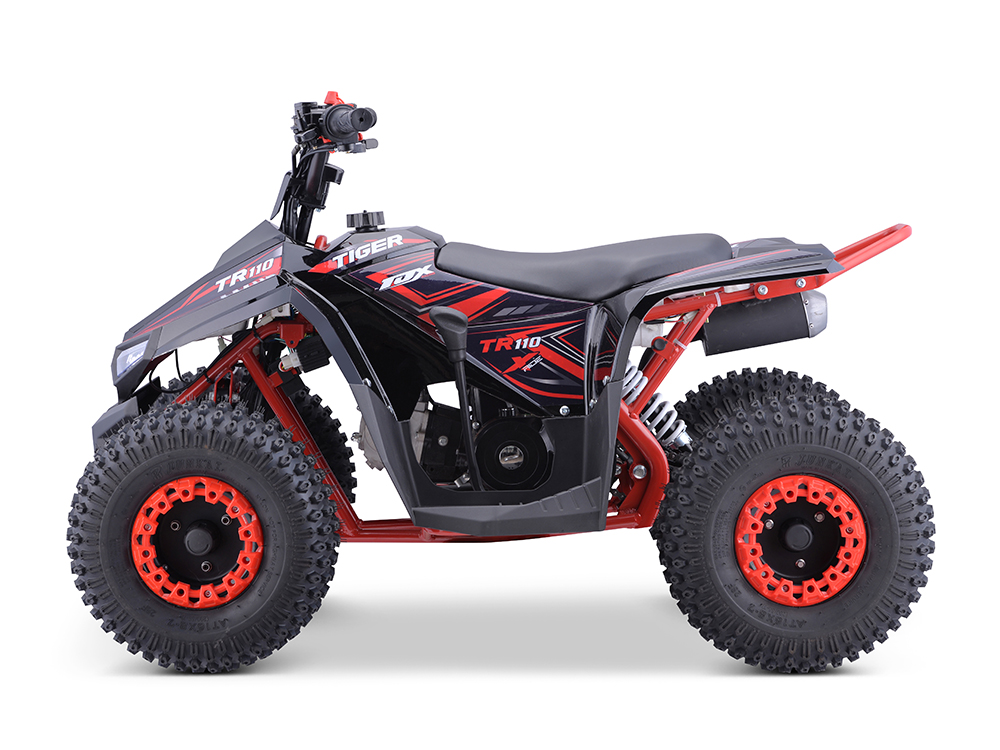

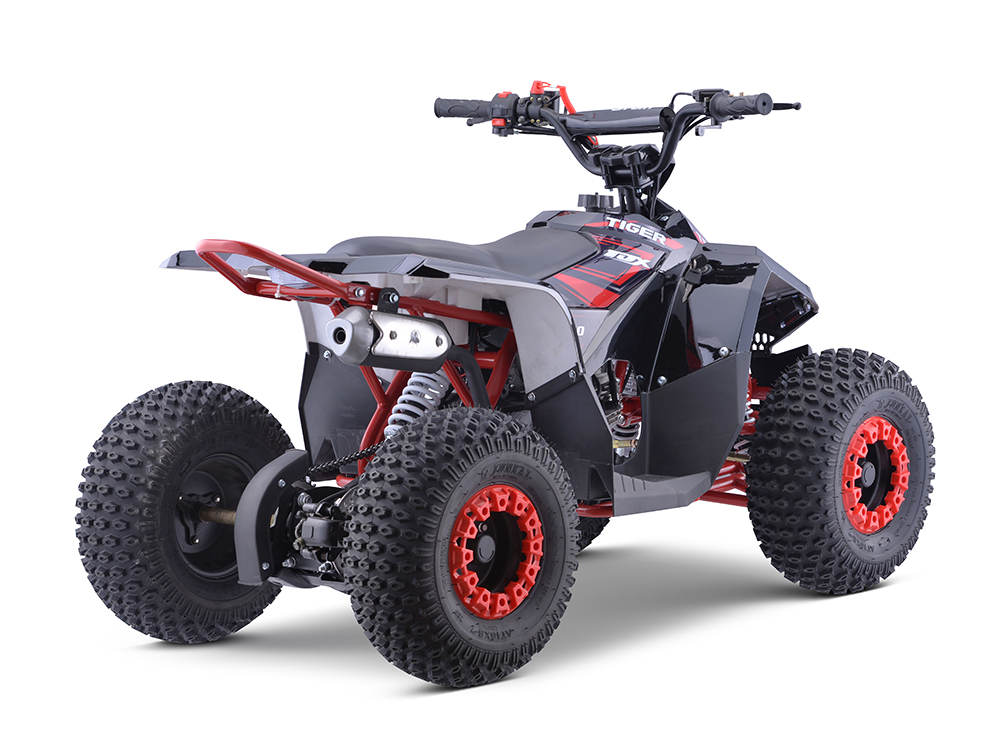

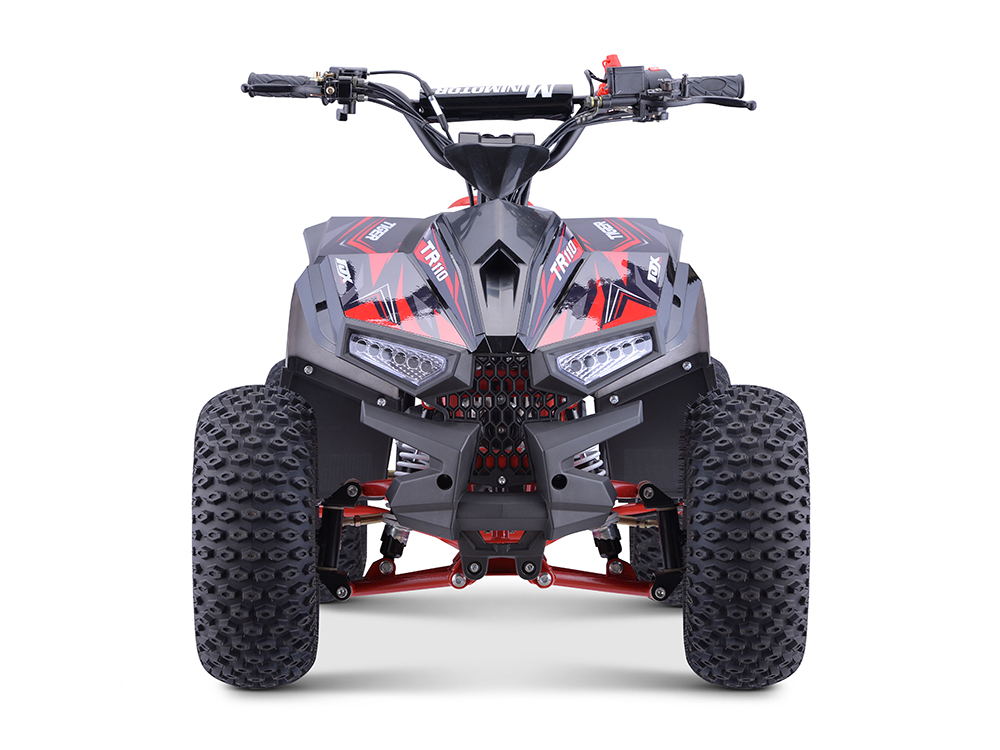

SA506
4-Stroke Gasoline ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Engine | 1 cylinder, 4 stroke, air cooled, 110cc |
| Dispacement | 107ml |
| Compression ratio | 9.0:1 |
| Max. power(kw/r/mim) | 4.9/8500±500 |
| Max. torque(N.m/r/min) | 7.2/5500±500 |
| Idle speed | (1500±100)r/min |
| Transmission | Chain drive with full auto clutch |
| Final drive | 14T / 37T, 420# chain |
| Starting system | electric start only |
| Ignition | C.D.I |
| Lubrication system | pressure splash |
| Engine oil volume | 0.9L |
| Battery | 12V 5Ah |

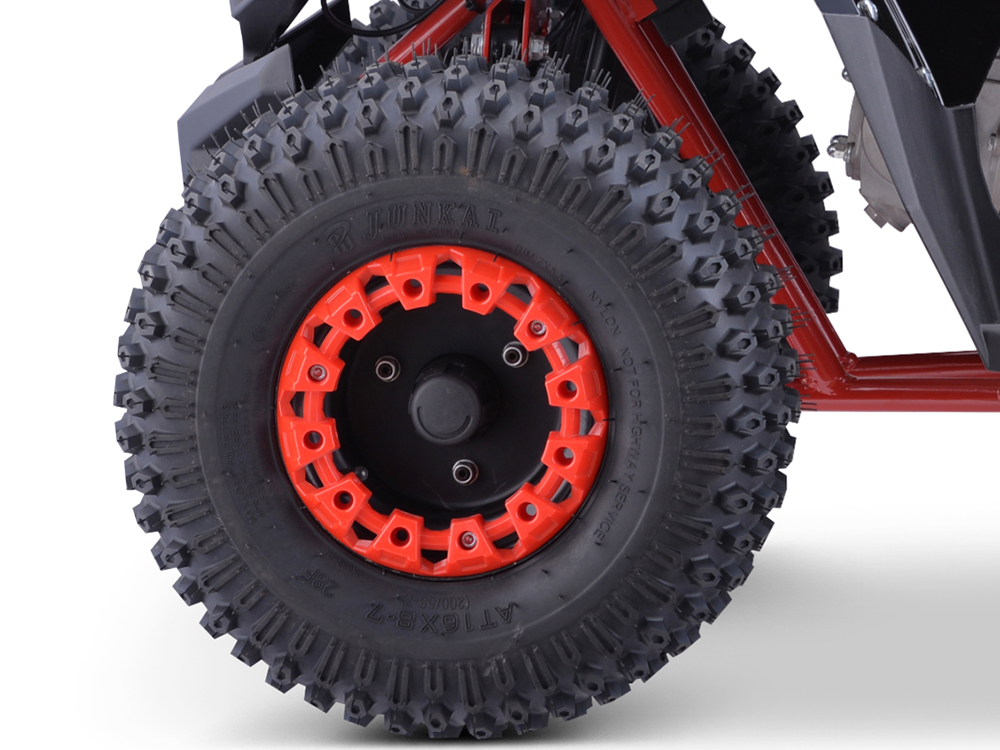

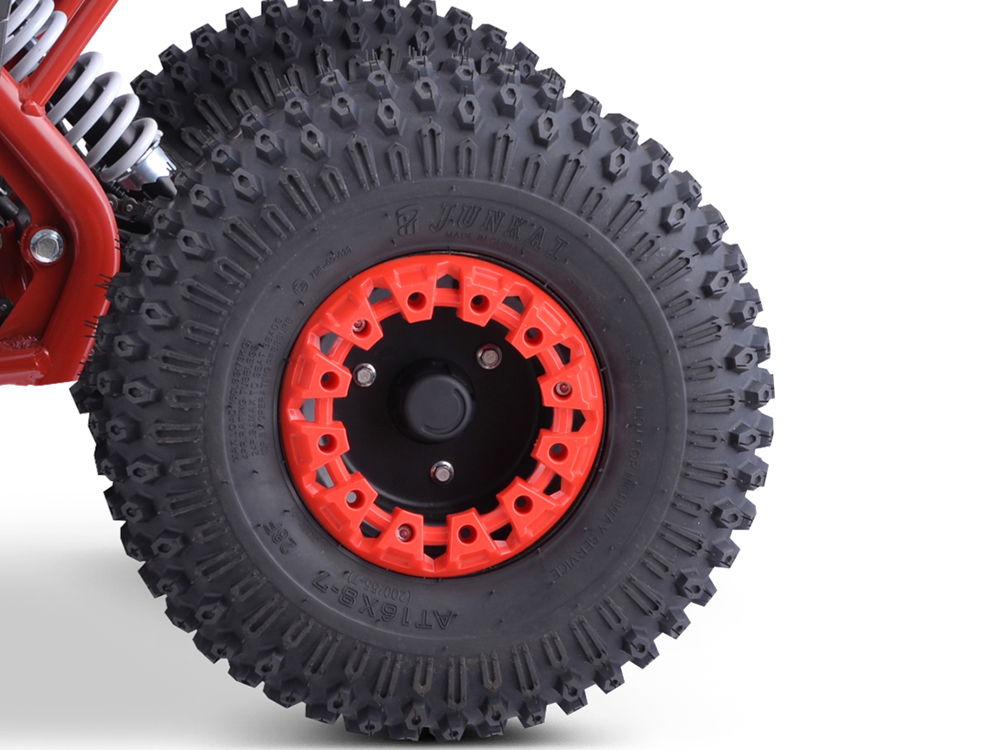

| Wheel & tires | high strength steel rim, 7" |
| Tire | front / rear 16x8-7" |
| Petrol tank volume | 2.0L |
| Max. speed | 55kmph |
| Max load capacity | 90kgs |
| Brake system | front durm brake / rear hydraulic disc brake |

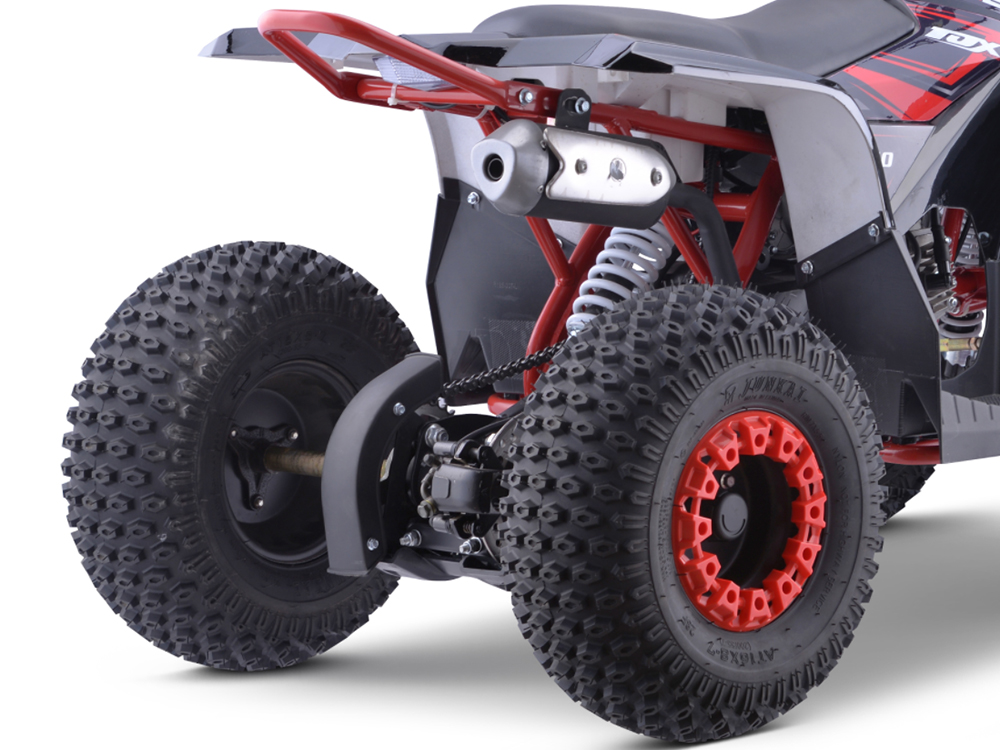

| Suspension | front double A swing arm, rear mono shock |
| Dimension ( L*W*H) | 1300*840*880 mm |
| Wheelbase | 900mm |
| Seat height | 630mm |
| Min ground clearance | 200mm |
| Dry weight | 83.5kgs |
| Qty/container | 39pcs/ 20ft container, 108pcs/40HQ container |
