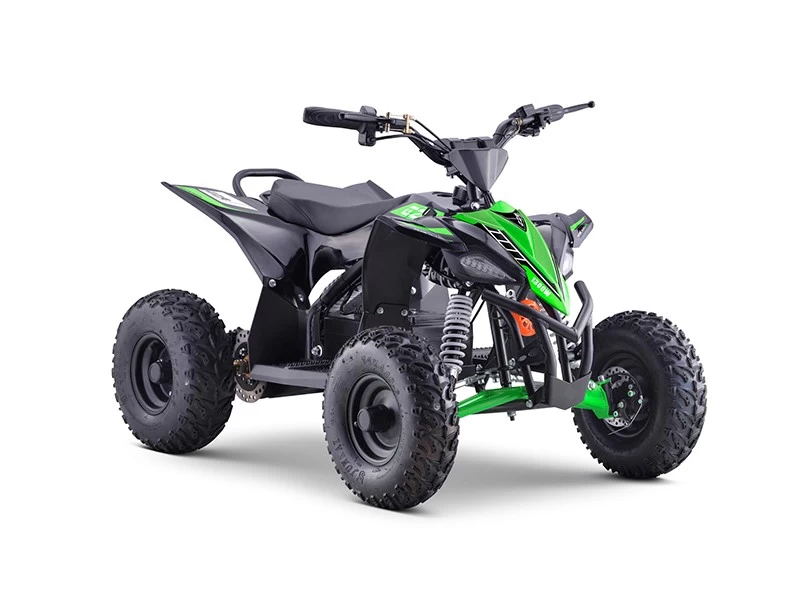

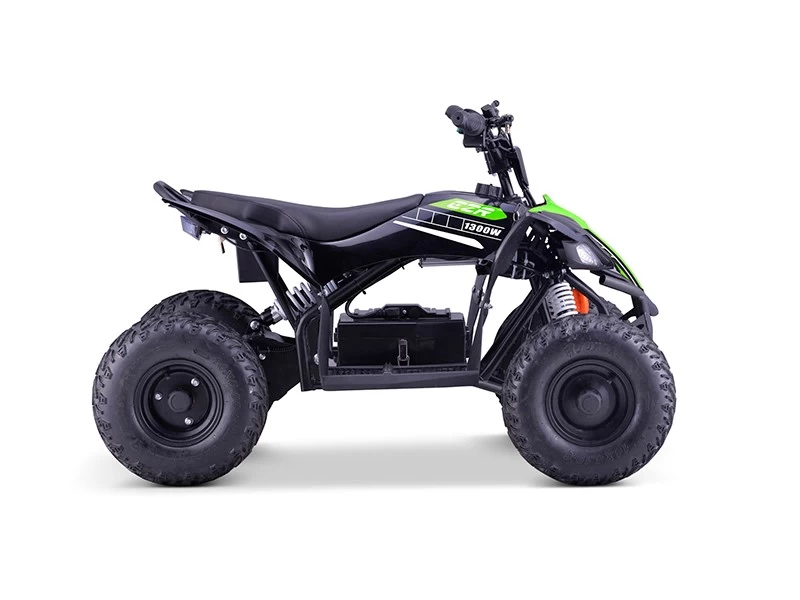

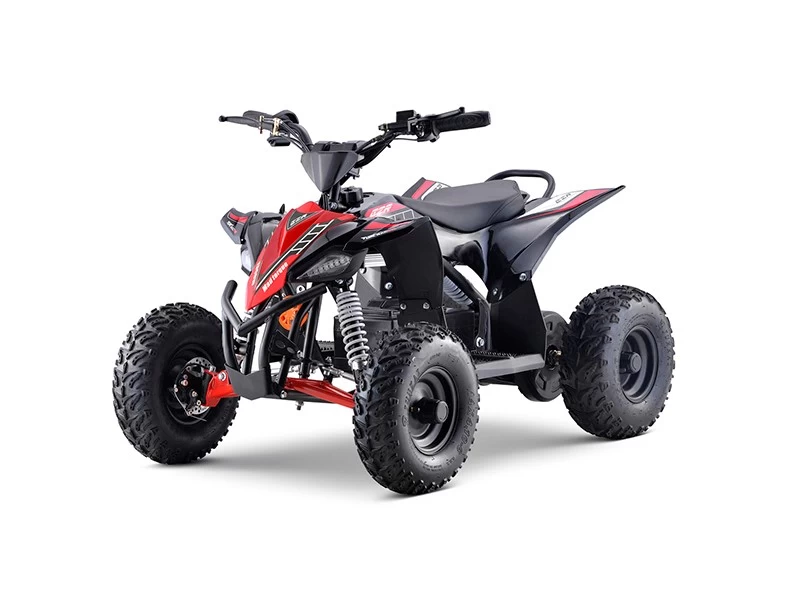

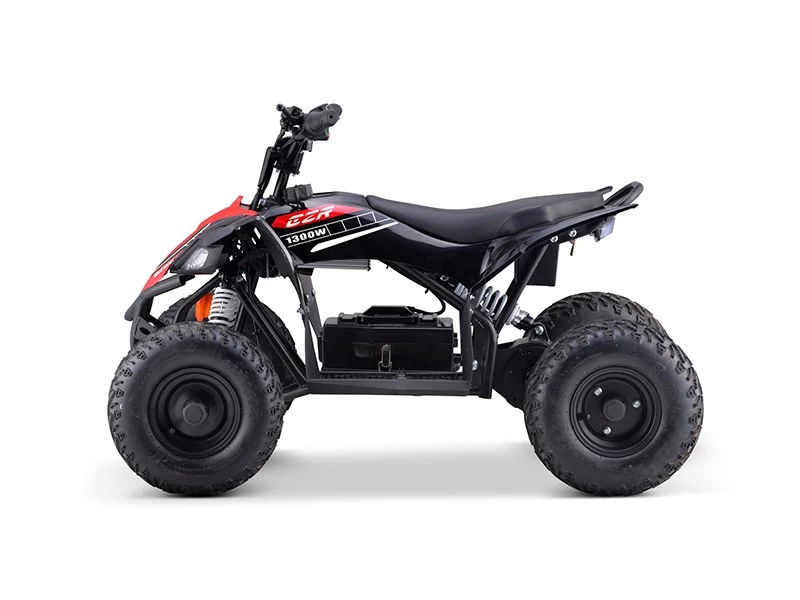

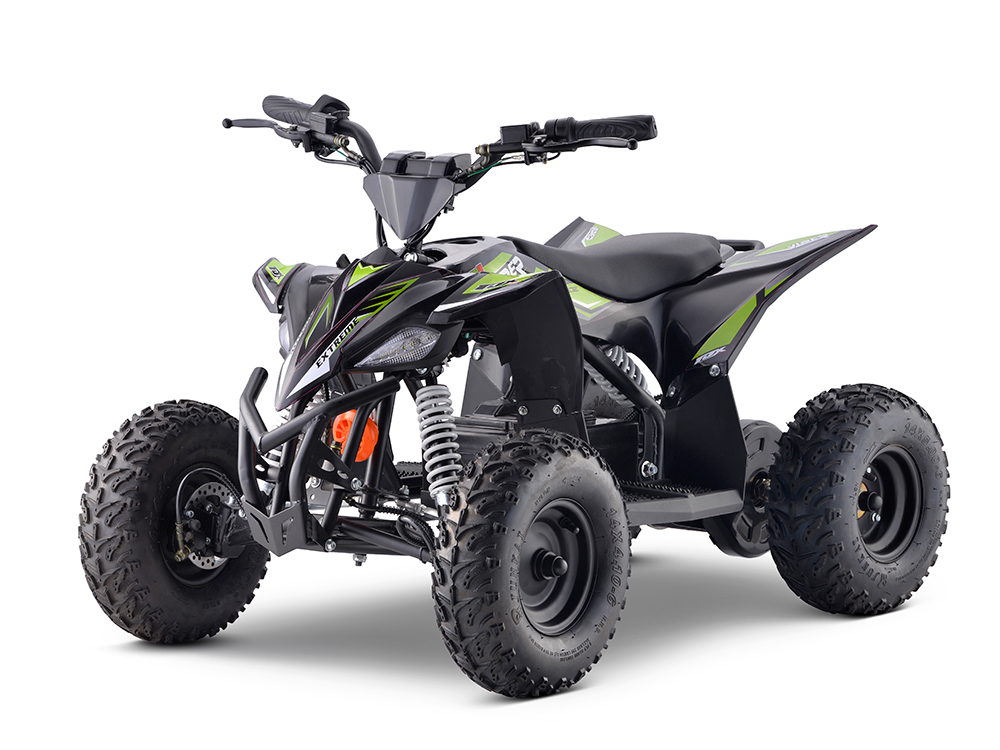

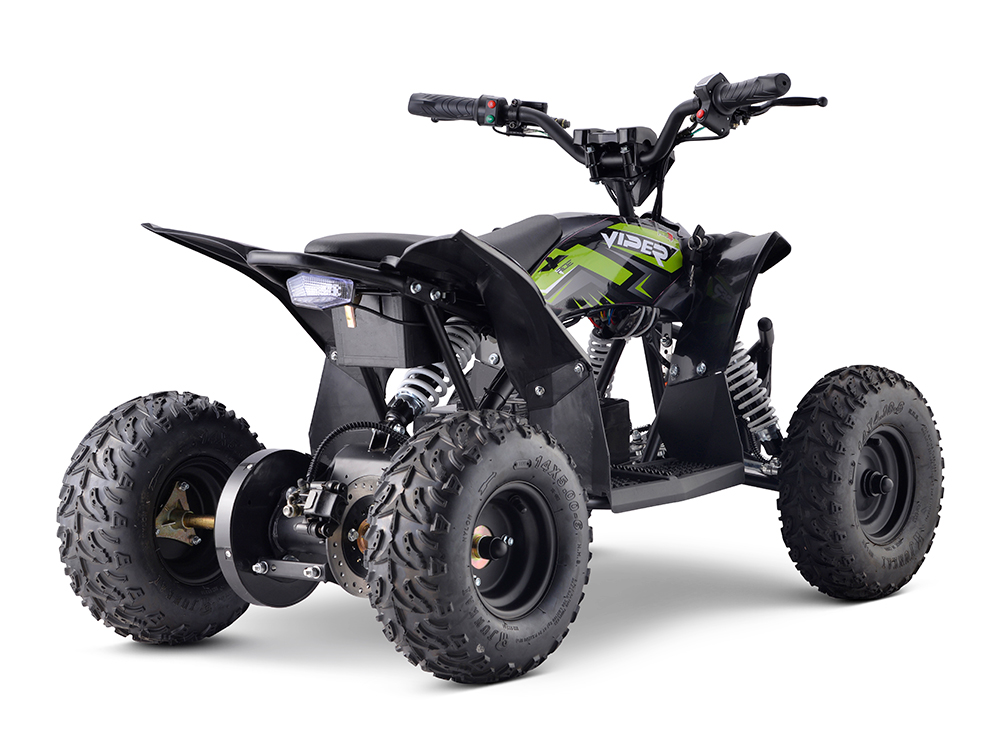

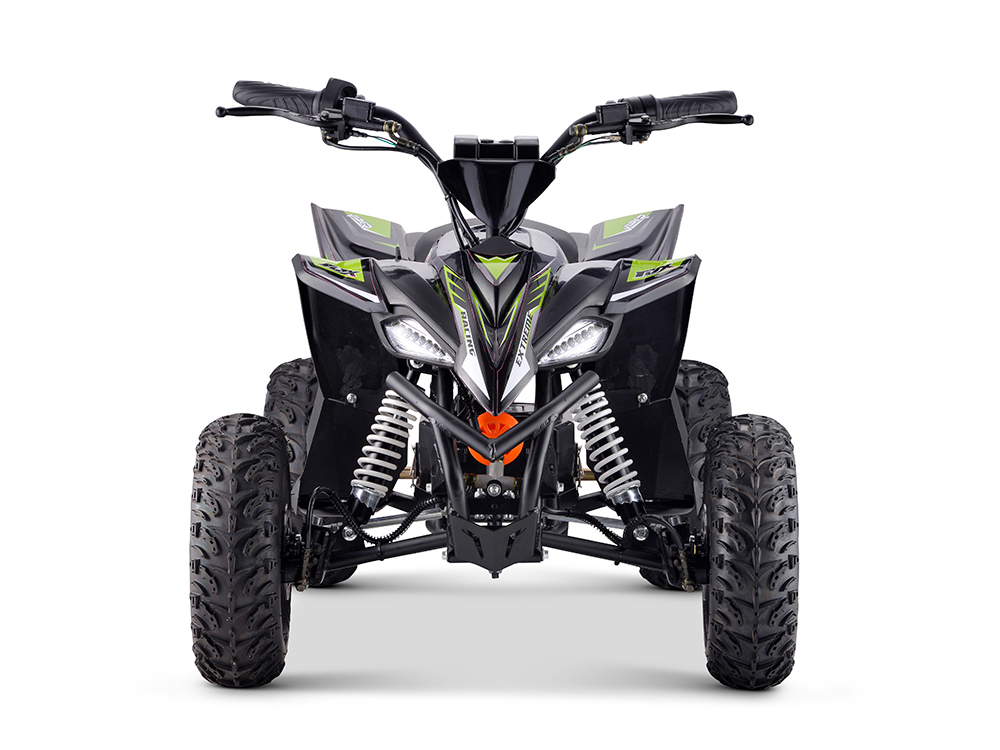

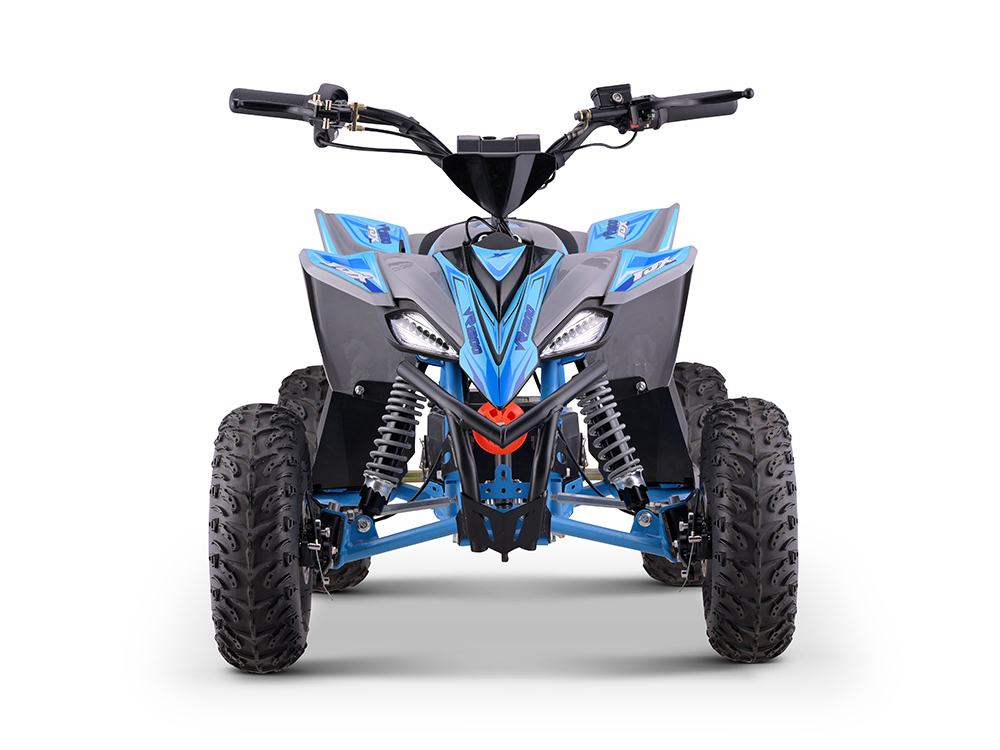

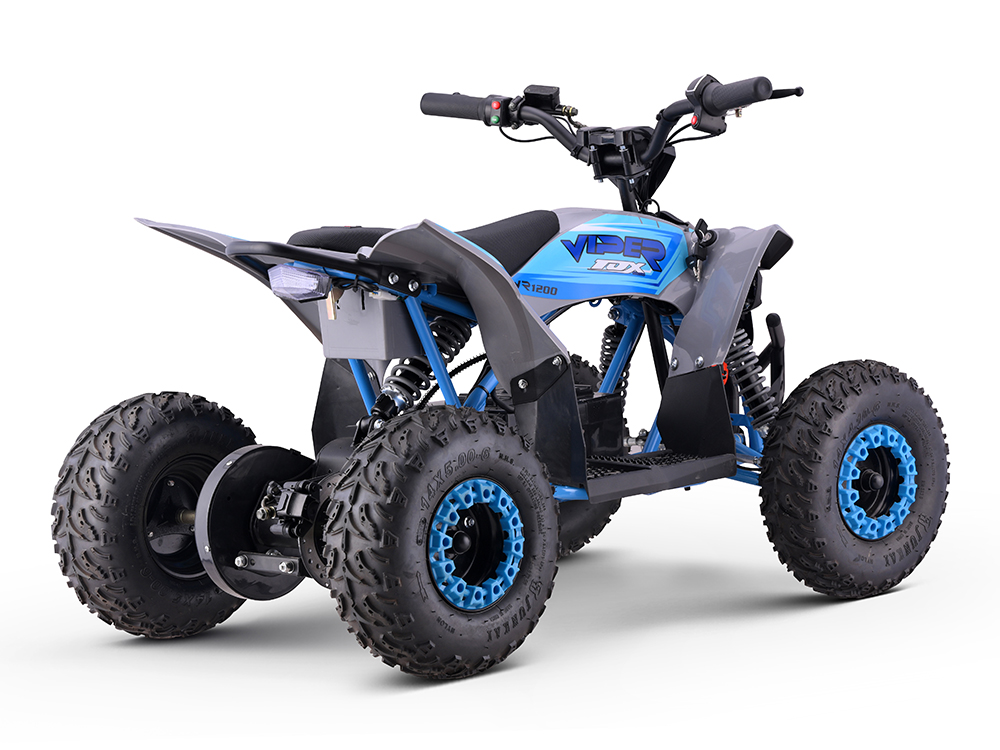

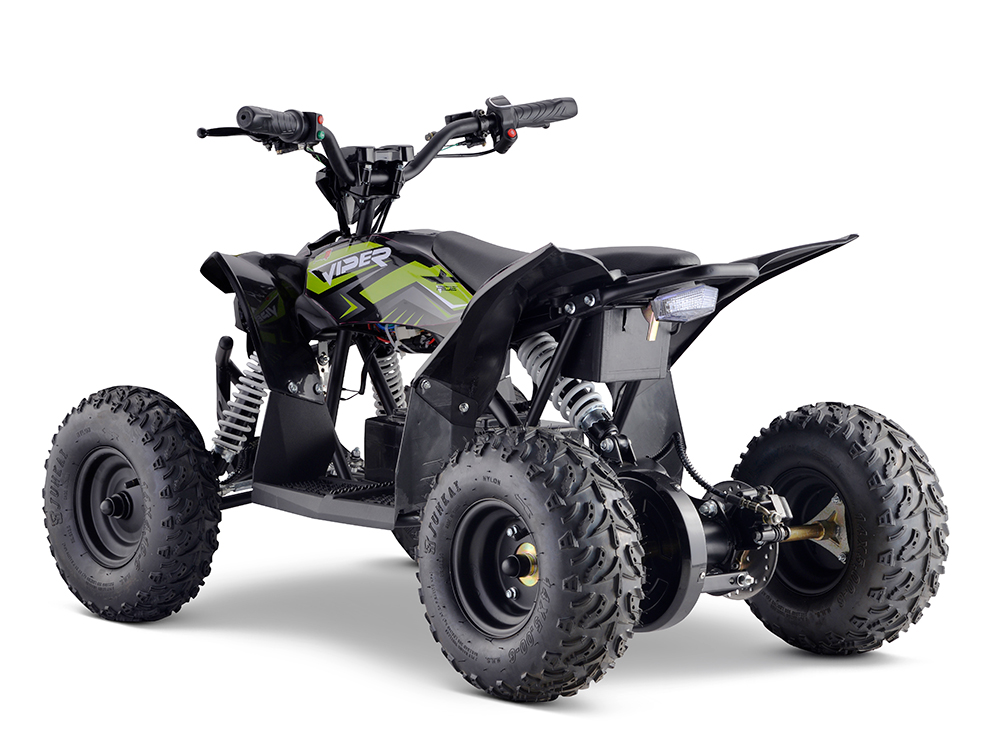

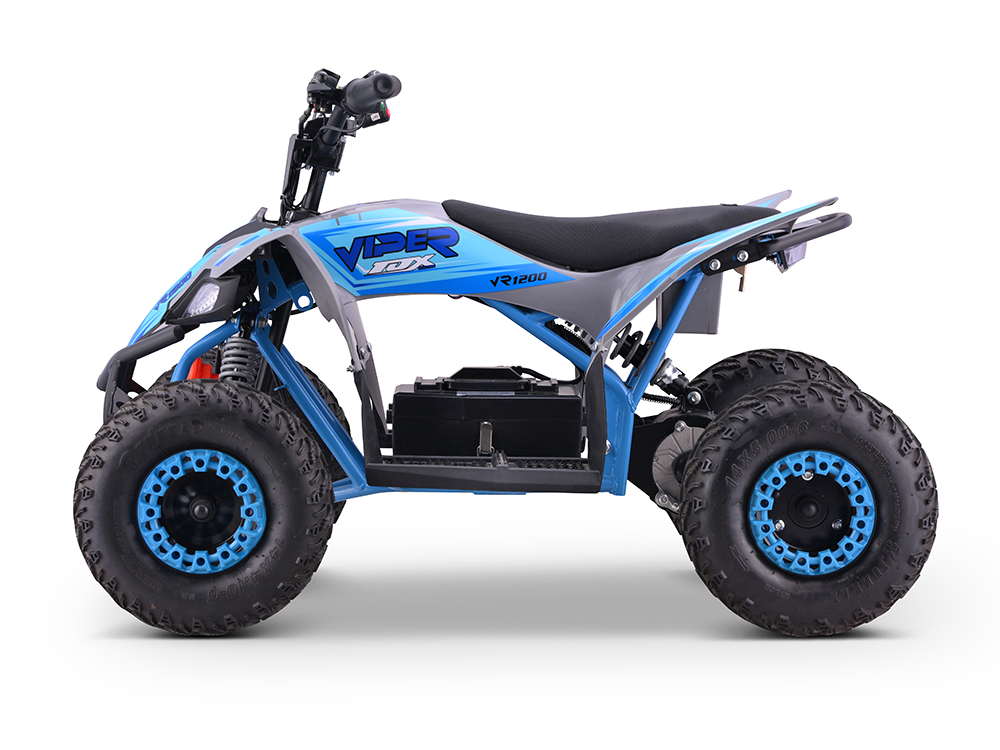

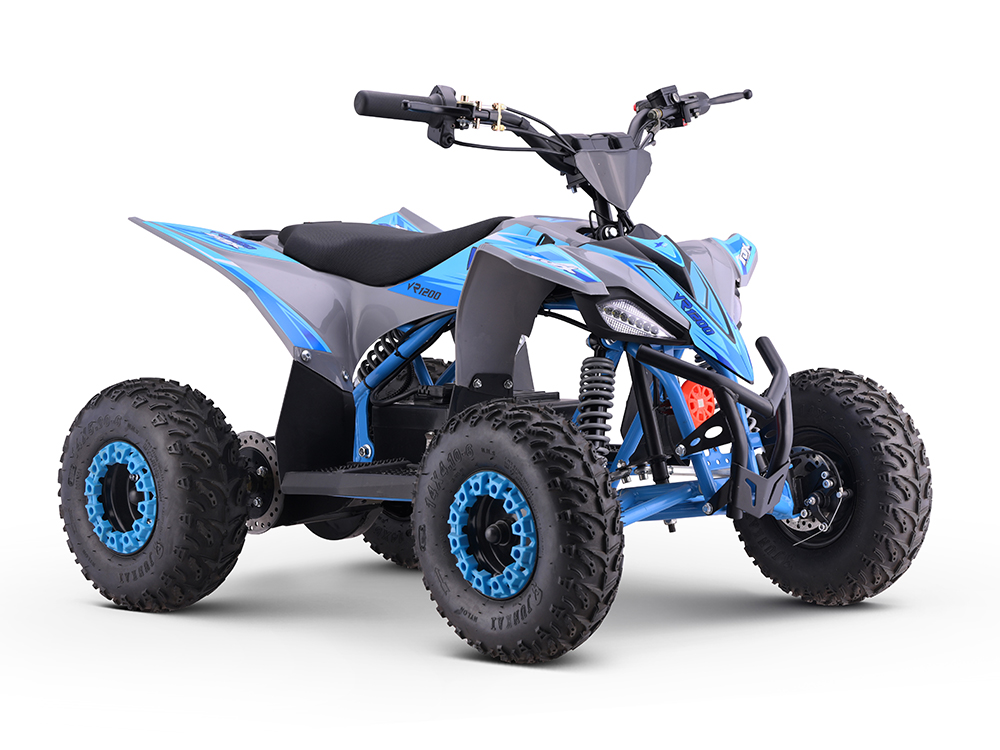

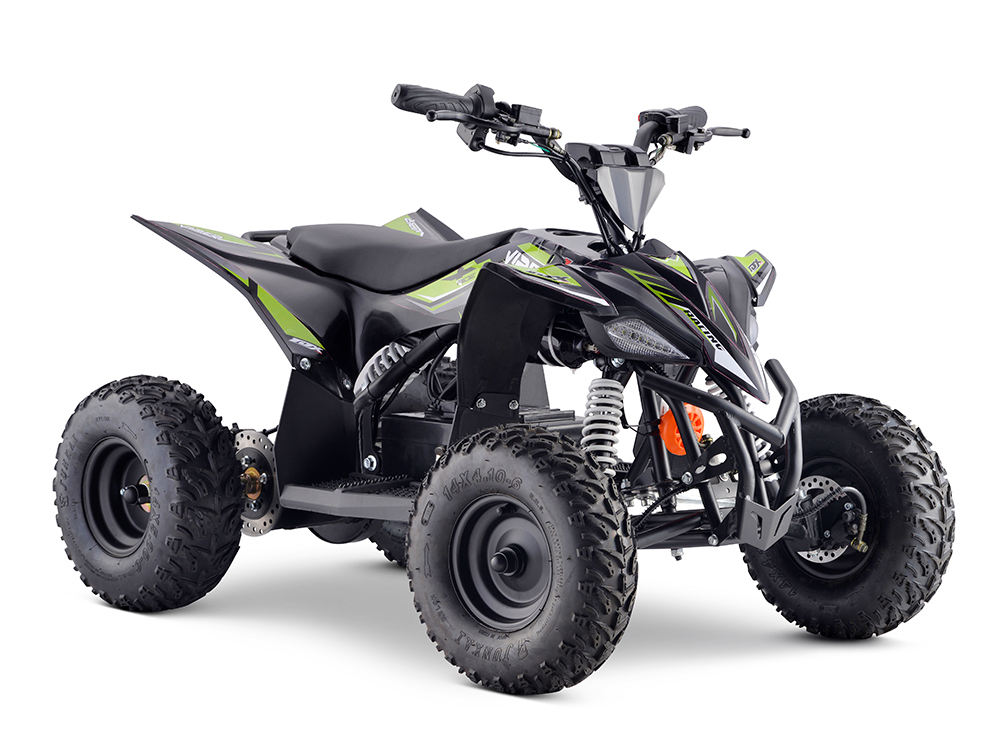

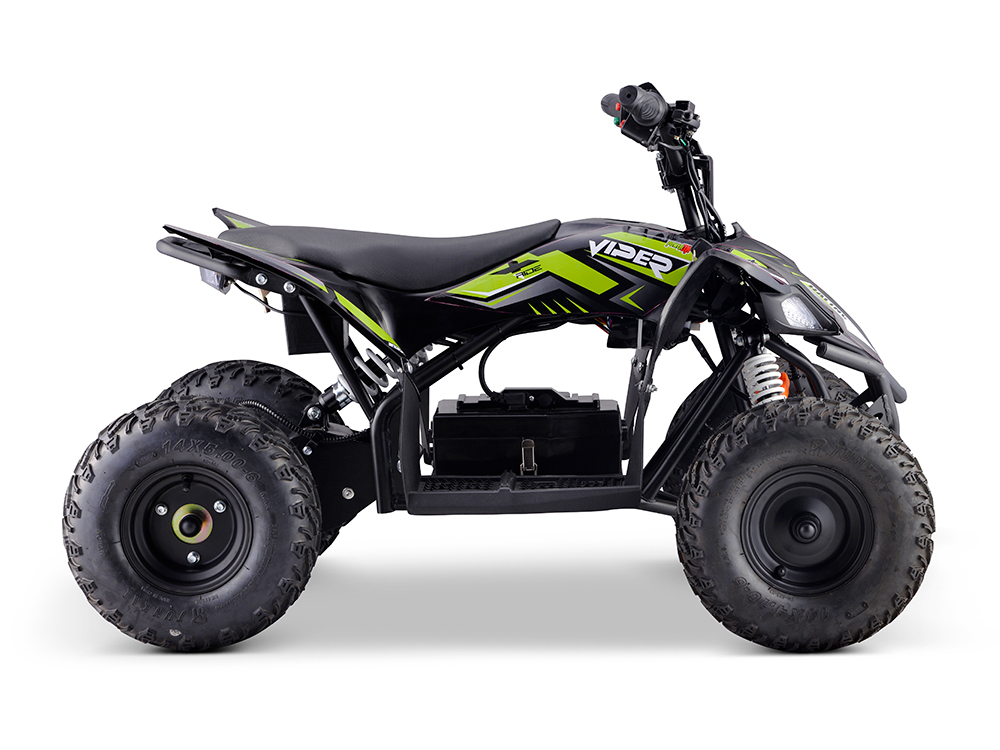

E-ZR50
Electric ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| E-motor | 1000W 36V neodymium magnet DC BRUSHLESS motor |
| Optional E-motor | 1300W 48V Brushless motor |
| Battery | 3*12V 12AH lead acid |
| Optional battery | A: 48V12Ah lead acid B: 36V13Ah lithium C: 48V13Ah lithium |
| Transmission | intelligentized controller,2 function adjustable (see info. below) |
| Throttle response speed adjustable | 0.2S-1.0S |
| Max speed adjutable | 8kmph-28kmph / 33kmph (1300W) |
| Final drive | 36V 1000W: 10T / 70T, 219H# chain 48V 1300W: 11T / 66T, 219H# chain |
| Range per full charge | 12AH lead acid battery: ~20KM 13AH lithium battery: ~24KM |
| Wheel & tires | high strength steel rim, 6" |

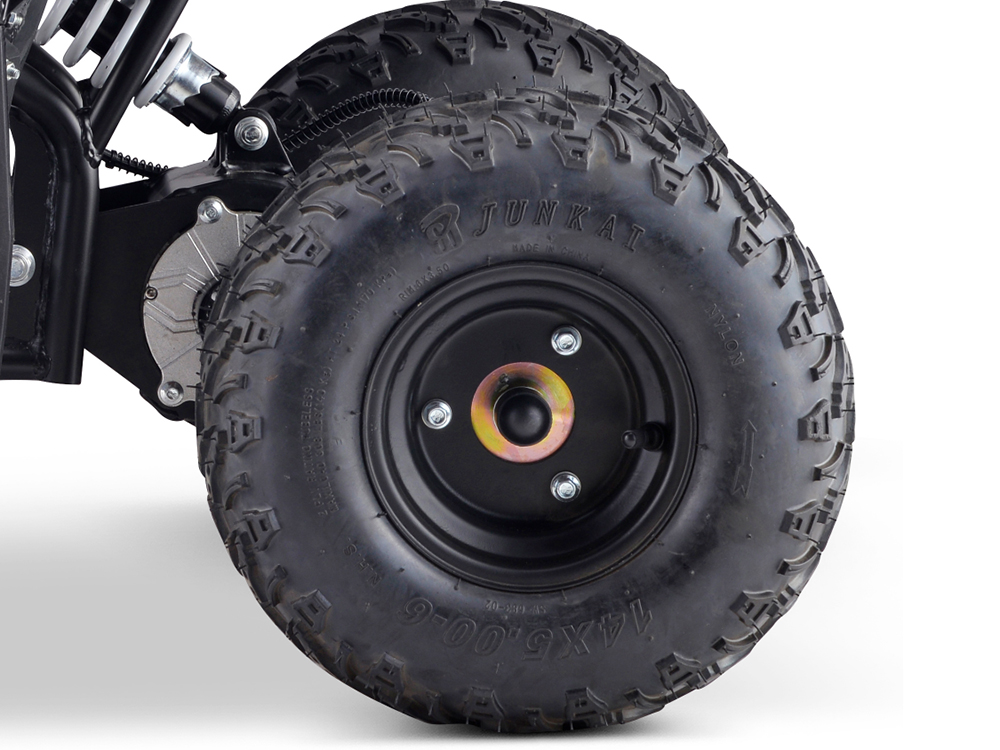

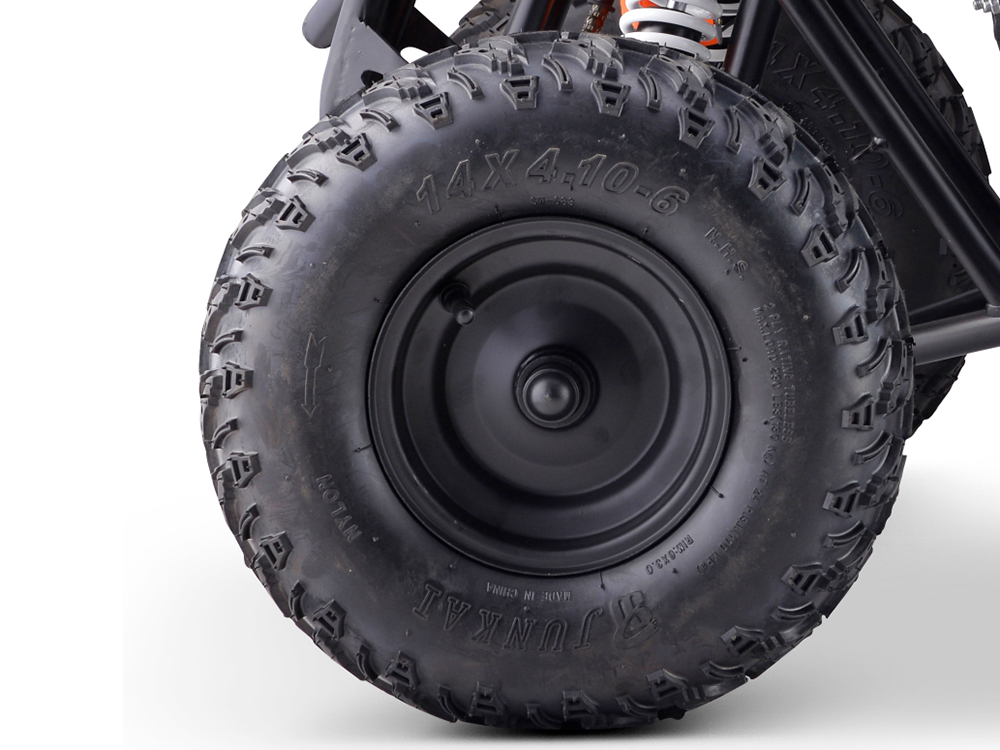

| Tire | front 14*4.10-6" rear 14*5.00-6 |
| Max. speed | 36V 1000W: 28kmph 48V 1300W: 33kmph |
| Max load capacity | 65kgs |
| Brake system | front mechanical disc brake and rear hydraulic brake |
| Suspension | hydraulic shock absorber, front A swing arm, rear mono shock |
| Dimension ( L*W*H) | 1165*725*765mm |
| Wheelbase | 790mm |
| Seat height | 550mm |
| Min ground clerance | 180mm |
| Dry weight | 58kgs lead acid battery 50kgs lithium battery |
| Carton size | 1040*630*525mm |
| QTY/Container | 80pcs/20ft 200pcs/40HQ |
